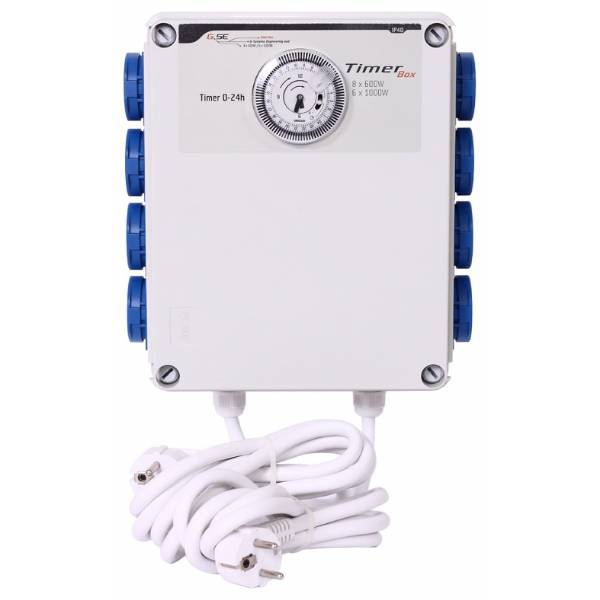

GSE Timer Box II 8x600W
The timer box is used by several inductive loads such as high-pressure lamps with high switch on and off simultaneously. This turns on contactor/relay 4x600W loads. Model with heating socket is on when lights are off (power management). A thick 2.5mm² power cable keeps low cable temperature over 12-18h run-time.
A chargeable battery in the timer allows to run the timer for 36h without power-grid, we GSE strictly recommend to keep the battery charged min. once a year. The battery have a restricted warranty of 14months from the date of the production from GRÄSSLIN! On all other components 24months after sales.
Sizes and technical data's:
- Case: WxHxD = 200x255x95mm
- Timer box: WxHxD = 230x300x110mm
- 2 Pole incl. connector 2x16A (EU) 8x600W
- 2 Pole incl. connector 2x13A (CH, UK) 8x600W
- Volt: 230V / 50Hz
- 24h timer with 36h power reserve 30min. setting
- Contactor: 4x16A 230V
- Protection class: IP40
