For industrial and domestic ventilation

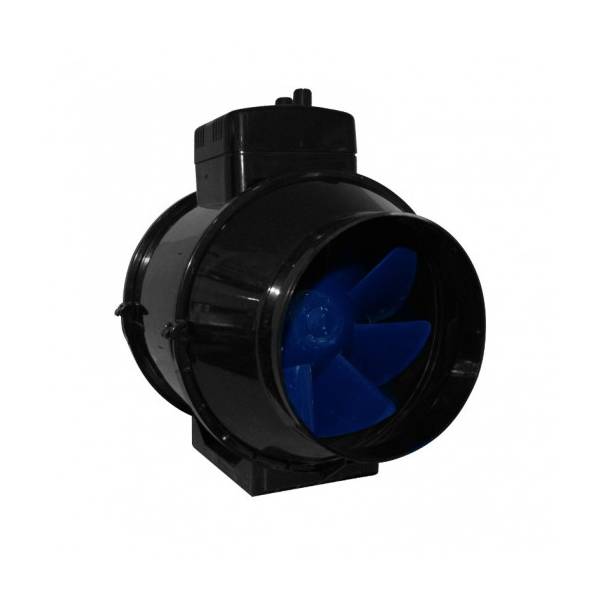

This extractor will regulate the air flow, temperature and renew the air in the grow space. WINFLEX TT is a high performance axial and centrifugal fan.
They are designed for supply and exhaust air
The fan is compatible with circular ducts from Ø 100 to 315 mm. Originally used for the ventilation of bathrooms and kitchens and other humid environments, but also for the ventilation of apartments, country houses, shops, cafes, etc ...
WINFLEX TT will fit perfectly in environments of great culture.
Available in the following formats:
TT 125U:
- Diameter: 125 mm
- Min flow rate: 220 m³ / h
- Max flow rate: 280 m³ / h
- Consumption: From 23 to 37 W
- Intensity: 0.19 to 0.26A
- min dBA: 29 (for 220 m3 / h)
- max dBA: 36 (for 280 m³ / h).
- Maximum temperature: 60 ° C
- Male IEC plug: Yes
- Thermostat: Yes
- Dimmer: Yes
TT 150U:
Diameter: 150 mm
Min flow rate: 467 m³ / h
Max flow rate: 552 m³ / h
Consumption: From 30 to 60 W
Intensity: 0.17 to 0.27A
min dBA: 33 (for 467 m3 / h)
max dBA: 44 (for 552 m³ / h).
Maximum temperature: 60 ° C
Male IEC plug: Yes
Thermostat: Yes
Dimmer: Yes
Discover all our air extractors!
Specifications
Manufacturer |
Winflex |
Fan Type |
Elicoidale |
Warranty |
1 Years |
Volt  |
24 Volt |
R.P.M |
2460 |
Extract capacity |
520 m3/h |
dBA / 3mt |
44 |
Diameter |
15 cm |
Temperature Controller |
Yes |
