Sound Insulated Fan Blauberg Iso-Mix - 12,5cm (347 m3/h) - With Thermostat

Sound Insulated fan with 12,5cm flange and thermostat for temperature control

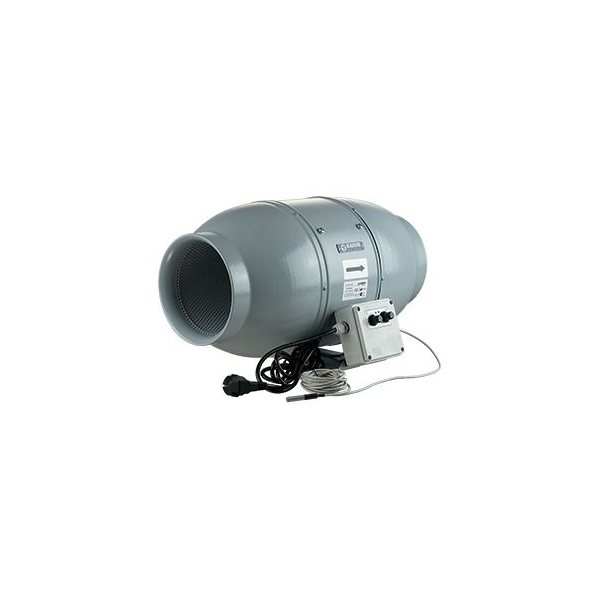

Blauberg Iso-Mix silenced fan with 12,5cm diameter flange is a sound insulated exhaust fan wich allows it be installed for your ventilaytion system in various premises with high requirements to the noise level.

It comes complete with mounting brackets on the fans casing for mounting to the floor, to the wall or ceiling.

These extractor fans can placed in parallel with other fans higher air extraction, or can be used in-line to obtain a higher negtive pressure.

About: Sound Insulated Fan Blauberg Iso-Mix 12,5 cm

This silenced extractor fan can be used for indoor cultivation or for any premises such as, bathrooms, kitchens or libraries, that require high pressure, powerful air flow and low very noise level.

Technical specifics:

• Voltage ( 230 V )
• Frequency ( 50/60 )
• Power (min) ( 25 W )
• Power (max) ( 30 W )
• Minimum air capacity (min) ( 235 m³/h )
• Maximum air capacity (max) (  347 m³/h )
• DBA (min) ( 23 )
• DBA (max) ( 28 )
• Max. operating temperature ( 60 °C )

All the available diameters for Blauberg Iso-Mix

Following the complete list and offers for these sound insulated extractor fans:

• Blauberg Iso-Mix 10cm - with thermostat (233 m3/h)
• Blauberg Iso-Mix 15cm - with thermostat (550 m3/h)
• Blauberg Iso-Mix 20cm - with thermostat (1035 m3/h)
• Blauberg Iso-Mix 25cm - with thermostat (1315 m3/h)
• Blauberg Iso-Mix 31,5cm - with thermostat (1920 m3/h)

Specifications

Attachments

Scheda Tecnica

---
