Axial extractor - VENTS TTM125UN - 125mm - 230-340m³ / h

Highly recommended indoors for places that should pay particular attention to noise levels

The use of the TTM series extractors is highly recommended in air management systems in places that require particular attention to noise levels such as libraries, conference rooms, kindergartens and schools.

The external case is made of steel entirely covered in synthetic polymer; internally it is perforated so that the sound waves can pass through the small holes ending at a specific angle on the two-level soundproofing surface.
Internally, the case is made resistant to heat and noise thanks to a 50mm thick layer of mineral wool.

Installation:
The extractor can be installed anywhere and at any angle within the air extraction system. Furthermore, within a single system it is possible to install more than one aspirator in parallel to obtain a greater extraction capacity; alternatively, the extractors can be installed in series to obtain a higher negative pressure.

• The extractor is equipped with brackets for fixing to the wall, ceiling or floor.

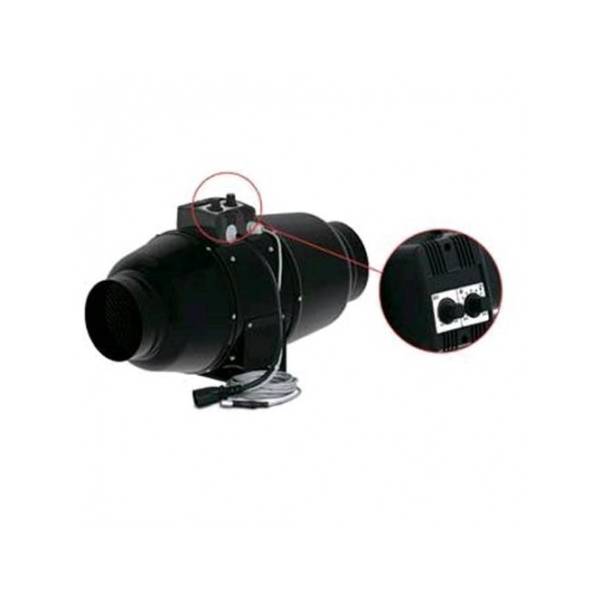

U version with temperature sensor and speed controller

The ideal solution for the ventilation of rooms in which the temperature is kept constant. you want to keep within the environment.

Specifications:

Flow rate: 340 M / H
Speed: min / max
Voltage [V / 50-60Hz]: 1 ~ 230
Power [W]: 25/30
Current [A]: 0.11 / 0.13
Maximum air flow: 340Mq / h
Revolutions: 1650/2310
Noise: 23-28 dBA
Maximum temperature: 60 ° C
Degree of protection: IP X4
