Thermostat Station 2(TS-2) - Trolmaster

For Hydro-X Environmental Control System

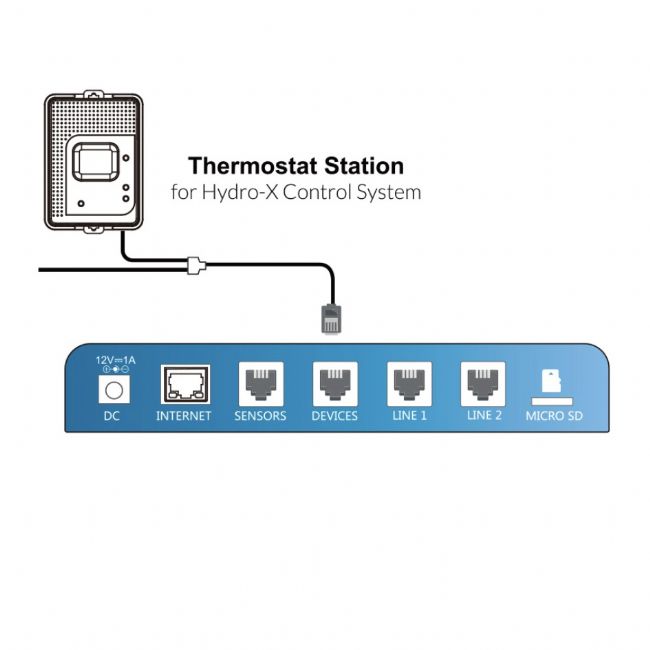

The TS-2 thermostat stations is designed to replace a thermostat connected to a standard HVAC unit. The TS-2 can be used to control most HVAC systems including heat pump and multi-stage HVAC systems. The  TS-2 is wired to the HVAC system using the same low-voltage thermostat cable, and has the standard color-coded wiring as most thermostats. The Hydro-x allows separate Day and Night settings for each of up to (4) TS  modules, so multiple HVAC systems can be controlled by a single Hydro-X system. The TS-2 also has an adjustable delay time for each HVAC systems being activated. That minimizes high start-up (inrush current) and allows up to 4 HVAC systems to be safely controlled.

_{Note: To update firmware on the TrolMaster's controllers and modules, you must use a Micro SD card that is 32GB or less capacity.}

_Features

• LCD Display, Easy Operation
• Seamless Connection with Hydro-X
• Micro-SD for Firmware Upgrade
• Address Assignment
• Plug & Play

Package Content

• 1 x Thermostat Station (TS-2)
• 1 x 16ft RJ12 Cable
• 1 x 4ft RJ12 Cable
• 1 x RJ12 T-Splitter

Specification

Output Voltage:                        24V

Maximum Current:                   1A

Working Environment:             Temperature 32-122°F, Humidity=90%

Packaging Dimensions:           160mm(L) x 86mm(W) x 86mm(H)
