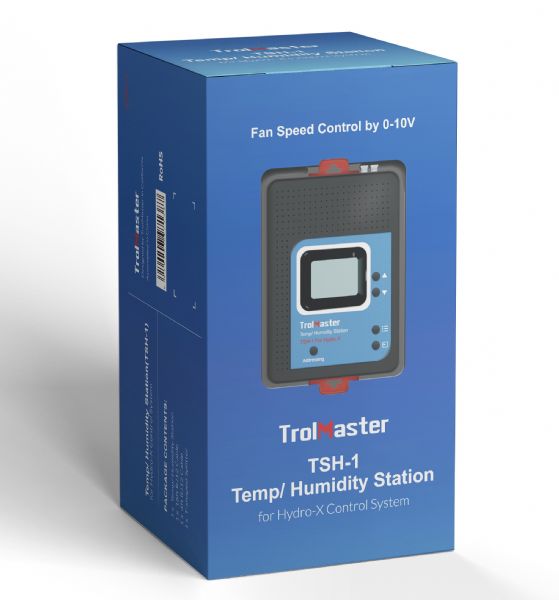

Temperature / Humidity Station(TSH-1) - Trolmaster

Ideal for fans and air control

The Trolmaster TSH-1 Temperature / Humidity Station is a 0-10 volt analog output control station that works with the HCS-1, HCS-2 and HCS-3 controllers. The TSH-1 can be configured to control either a temperature or a humidity device that requires a variable 0-10 volt input signal.

The TSH-1 is capable of controlling variable speed fans, vents or any other device that accepts a 0-10 volt input. It features separate day and night “idle” speed settings built-into the TSH-1 as well as separate Day / Night setpoints accessed through the HCS controller.

_{*Firmware Update Note: To update firmware on the TrolMaster's controllers and modules, you must use a Micro SD card that is 32GB or less capacity.}



Features

• LCD Display, Easy Operation
• Seamless Connection with Hydro-X, Hydro-X Pro and Hydro-X Plus
• Micro-SD Slot for Firmware Upgrade
• Assignable control of Humidity or Temperature
• Plug & Play

Package content

• 1 x Temperature/Humidity Station (TSH-1)
• 1 x 16ft RJ12 Cable
• 1 x 4ft RJ12 Cable
• 1 x RJ12 T-Splitter

Specification

Output Voltage:                        0-10 V

Maximum Current:                   1A

Working Environment:             Temperature 32-122°F, Humidity=90%

Packaging Dimensions:           160mm(L) x 86mm(W) x 86mm(H)
