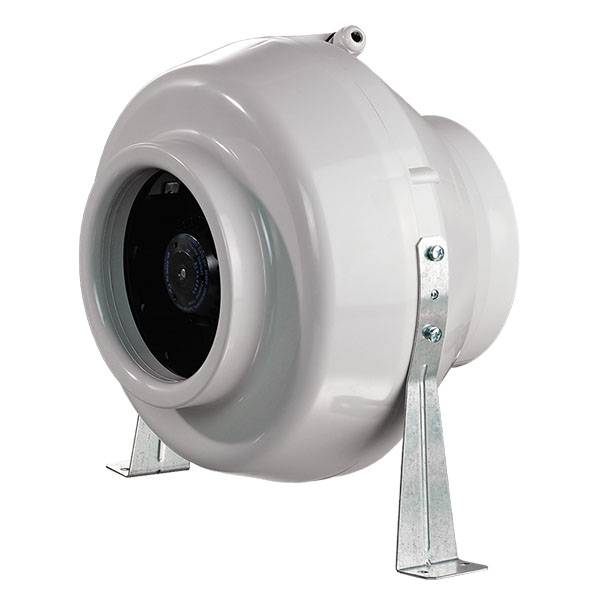

Blauberg - Centro - Inline centrifugal fan - 150mm 460m3/h

Made in Germany: Blauberg is the air extractor that combines efficiency, price and excellence in a single extractor!

Blauberg Centro in-line centrifugal fans are the ideal solution for installation in various environments, both domestic and commercial. They are particularly suitable for:

• Kitchen and bathroom ventilation
• Air intake and delivery systems
• Technical rooms with humidity

Compact and silent, these fans adapt perfectly to any space requirement, ensuring effective air exchange with limited noise.

Construction of Blauberg Centro fans

• Robust high-quality plastic casing
• Aerodynamic design to optimise air flow
• Hermetic mounting box
• Centro 150 is compatible with 150 and 160 mm air ducts

Blauberg Centro fan motor

• Single-phase external rotor motor with backward curved centrifugal impeller
• Ball bearings for increased durability
• Integrated thermal protection with automatic restart
• Dynamically balanced impeller
• High-power motor models available (Centro max) for increased airflow
• For environments requiring low noise levels, silent versions are available (Centro L)
• Centro V2 is equipped with a two-speed asynchronous motor with external rotor and dynamically balanced centrifugal impeller with backward curved blades

Speed ​​regulation

• Some Centro models have an integrated electronic speed regulator (FR1 option) for precise airflow control
• The speed can be regulated via an external thyristor regulator or with a stepped autotransformer (both available as options)
• The Centro V2 series features two-speed regulation via the external switch CDP-2/5 or CDP-2/10 (available to order separately)

Installation of Blauberg Centro fans

• Thanks to their compact design, the Centro fans are ideal for installation even in limited spaces
• Installation possible in any position
• Wall or ceiling mounting using the fixing brackets included in the standard scope of delivery or via the metal frame Halter Centro (available to order separately)
• The flexible air ducts are fixed to the fan connections using hose clamps.

Available versions and options

• G1: speed controller, temperature controller with external sensor (4 m cable), power cable with plug.
• W1: power cable with plug.

Dimensions:
