The fan can operate at low noise levels

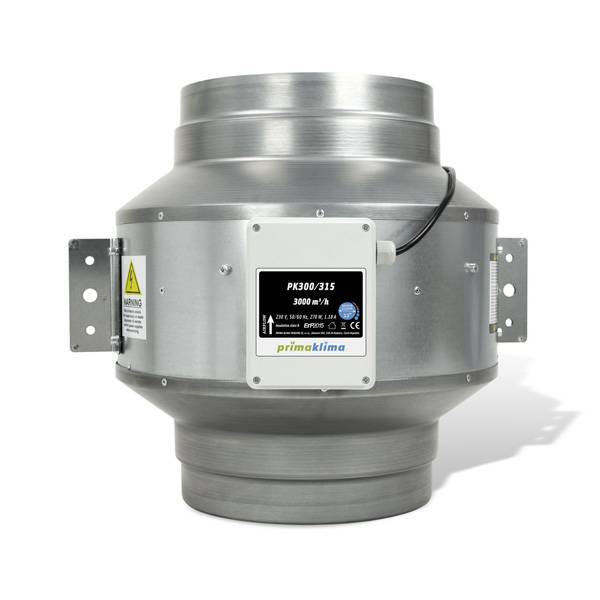

The Prima Klima BLUE LINE PK is equipped with an efficient German ZIEHL-ABEGG engine. The BLUE LINE fan is designed for continuous operation without interruption (over 80,000 hours at maximum speed). The fan can operate at low noise levels and exceeds the ERP2015 energy efficiency directive.
The power and control systems are housed in a fully assembled high quality junction box with a Schuko power cable. The pre-installed and sturdy mounting brackets allow perfect placement in the room.
Characteristics:
- Motor / impeller ZIEHL-ABEGG
- low noise emissions
- Continuous operation, over 80,000 hours
- Adjustable speed with thermal switch
- Junction box with Schuko power cable
Models Available:
PK300 / 315:
- Flange: 300/315 mm
- max: 3200 m³ / h
- Power: 270W
- Input: 230V, 50 / 60Hz, 1.18A
- Tmax: 50 ° C
- Dimensions: 522 x 470 mm (w / h)
- Weight: 14.2 kg
PK300 / 315-EC:
Flange: 300/315 mm
max: 4250 m³ / h
Power: 500W
Input: 230V, 50 / 60Hz, 2.2A
Tmax: 50 ° C
Dimensions: 522 x 470 mm (w / h)
Weight: 14.2 kg
PK355 / 400:
Flange: 355/400 mm
max: 4150 m³ / h
Power: 470W
Input: 230V, 50 / 60Hz, 2.3A
Tmax: 50 ° C
Dimensions: 480 x 500 mm (l / h)
Weight: 18.5 kg
The sturdy pre-installed mounting brackets allow perfect placement in the room.
Specifications
Manufacturer |
Prima Klima |
Watt |
270 W |
Fan Type |
centrifugal |
Warranty |
2 Years |
Volt  |
230 Volt |
Extract capacity |
3000 m3/h |
Weight |
14,2 Kg |
Diameter |
31,5 cm |
