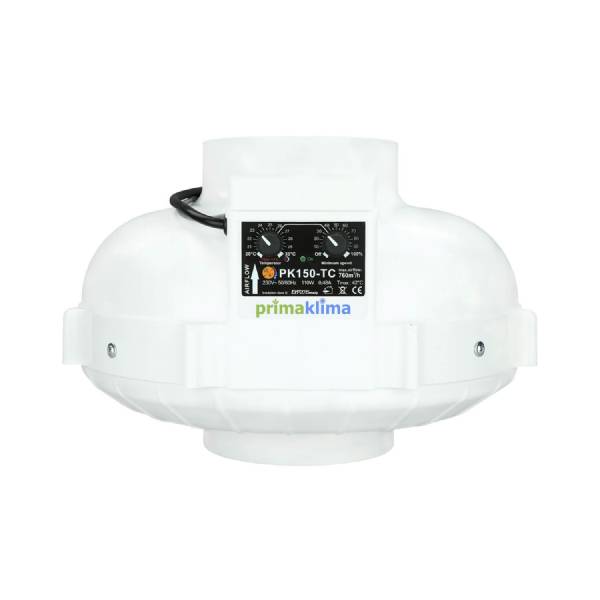

Helical extractor - Prima Klima AC - PK150-TC Ø150mm 760m3 / h with thermostat

In-line duct fan with thermostat

Prima Klima AC - PK TC with temperature controlled is a high efficiency in-line duct fan equipped with an ebm-papst motor with backward curved blades which has been optimally adapted to the housing.
The entire housing is made of high impact and flame retardant polyamide (nylon).
The maintenance-free long-life ball bearings contribute to a particularly smooth running of the motor.

Characteristics:

• Ebm-papst AC motor
• Backward curved blade impeller
• Aerodynamically optimized shape
• Impact resistant and durable housing
• The connection and the control system integrated in the housing

Available in 2 sizes:

PK125-TC Ø125mm:

• Flange:          125 mm
• max:              400 m³ / h
• Power:           60W
• Input:             230V, 50 / 60Hz, 0.26A
• Tmax:            50 ° C
• Dimensions: 244 x 220 mm (WxH)
• Weight:          2.3 kg



PK150-TC Ø150mm:

• Flange:         150 mm
• max:              760 m³ / h
• Power:          110W
• Input:             230V, 50 / 60Hz, 0.48A
• Tmax:            50 ° C
• Dimensions: 338 x 233 mm (WxH)
• Weight:          3.3 kg

Withstands temperatures up to 50 ° C.

Specifications
