Helical Extractor - CAN-FAN - Iso-Max 355/4800 - Ø 355mm, 4800m³/h

Unstoppable power, unexpected silence: the Iso-Max extractor revolutionises your ventilation, ensuring efficiency and peace of mind.

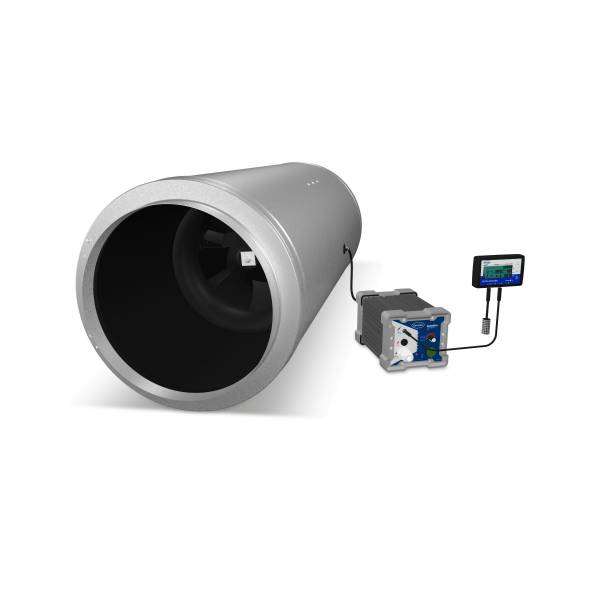

TheCAN-FAN Iso-Max 355/4800 helical fan is an absolutely unique diagonal tubular fan, designed to offer maximum efficiency, power and silence, making it a state-of-the-art choice for any ventilation system.

Like the Max-Fan, Iso-Max employs the innovative stator-rotor system, which optimises performance in terms of both airflow (4800 m³/h) and power consumption (868 W, 5.2 A). Its special feature lies in the fact that it is a fan integrated directly into a silencer. The body of the extractor is made entirely of metal, giving it robustness and durability, while for noise reduction it is equipped with a special sound-absorbing foam. This combination of light weight, high air performance and extraordinary quietness makes Iso-Max the ultimate solution for ventilation applications.

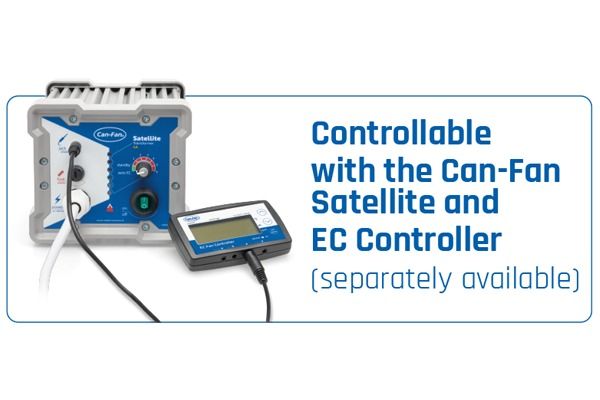

The Iso-Max is now compatible with the Can-Fan Satellite 4A, allowing precise speed control. For even more complete control, the Can-Fan LCD EC Controller can be connected to the Satellite 4A.

For safety, the Iso-Max is equipped with a thermal switch that automatically shuts down the motor if it reaches dangerous operating temperatures. In addition, it includes mounting brackets to facilitate quick and safe installation.

For best performance and results from your ventilation system, we highly recommend using the Iso-Max in conjunction with Can Filters activated carbon filters.

Technical specifications:

• Model: Iso-Max 355/4800
• Material: Metal
• Length: 995 mm
• Weight: 27 kg
• Diameter (Ø): 355 mm
• Flow rate: 4800 m³/h
• Current: 5.2 A
• Power: 868 W
• Speed Control: Yes (via dedicated accessories such as Can-Fan Satellite 4A)
• Special features: Fan integrated in a silencer with sound-absorbing foam
• Safety: Thermal switch
• Installation: Includes mounting brackets
