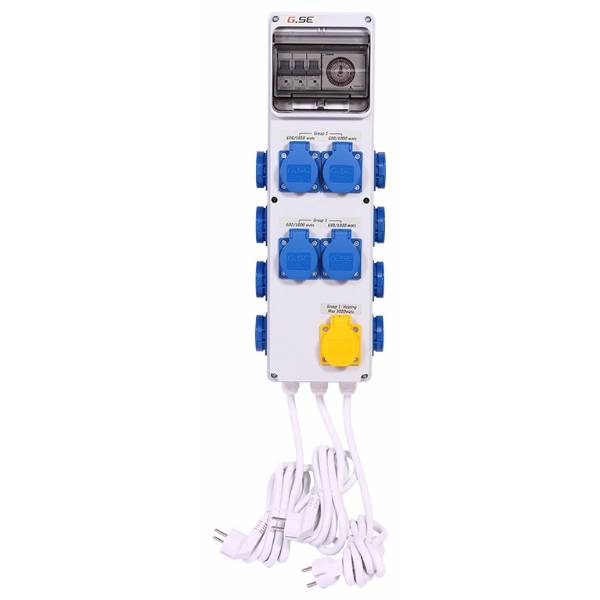

GSE Timer Box III 12x600W + Heating

High quality components

The timer III is built with high quality components such as "GRÄSSLIN" and "ISKRA"contactors Slovenia. A serious housing with cover and seal joint result a high protection class IP54. On 1-3 safety breaker you can switch ON/OFF the power circuits. The timer box III is used by several inductive loads such as high-pressure lamps with high switch on and off simultaneously. This turns on contactor/relay 4x600W loads. All model with heating socket is on when lights are off (power management). A thick 2.5mm² power cable keeps low cable temperature over 12-18h run-time.

A chargeable battery in the timer allows to run the timer for 150h without power-grid, we GSE strictly recommend to keep the battery charged min. once a year. The battery have a restricted warranty of 14months from the date of the production from GRÄSSLIN! On all other components 24months after sales.

Sizes and technical data's:

• Size: 500x160x115mm
• -Voltage: AC 230V/400V 50-60 Hz
• Power: 11'000W inductive loads (48A)
• Heating: up to 3'600W (resistive loads)
• Mechanical timer: 24h timer with 150h power reserve 30min. setting
• Relay mechanical endurance: 10000000 cycles
• Protection class: IP54

Specifications

Attachments

Manuale e caratteristiche - Timer Box III 12x600W

---
