Designed to keep the temperature of grow-rooms under control
Control unit designed to keep the temperature of your grow-room under control by decreasing or increasing the revolutions of your extractors as needed.

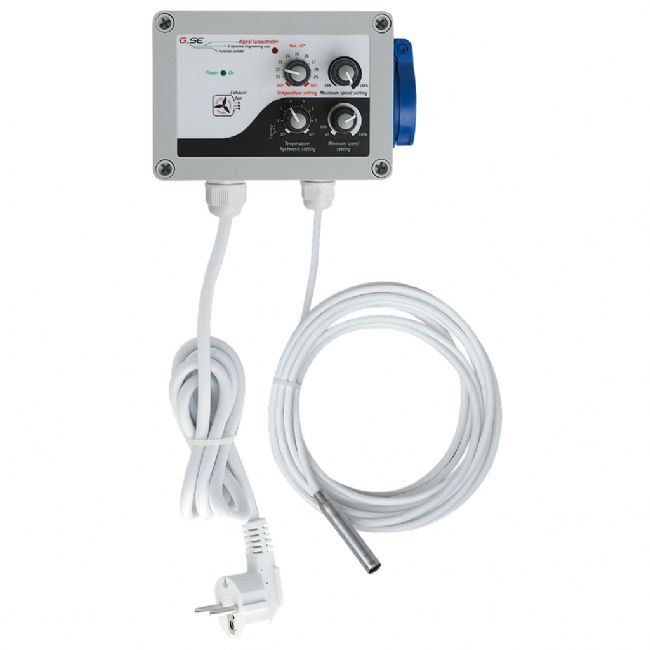

This new control unit allows you, thanks to 4 comfortable knobs, to set the desired temperature, the minimum and maximum revolutions of your extractors and, thanks to the new "hysteresis" function, the maximum temperature excursion in the different phases of the day. The control unit is delivered already assembled and ready for use. The control unit is complete with a waterproof cover, sockets with protective covers and a low voltage probe with a 4m cable. (extendable up to 50mt.) ideal for humid environments.
Control unit designed to keep the temperature of your grow-room under control by decreasing or increasing the revolutions of your extractors as needed.
The Temperature, minimum-, maximum- speed controller with hysteresis setting is a temperature depended speed controller for ventilated rooms with one ore more exhaust fans. The controller keeps the temperature constantly and impedes to run under the set minimum-speed, as well to run over the set maximum speed. The hysteresis defines the temperature range. It can be easily controlled, adjusting the required temperature minimum-, maximum speed and hysteresis on four knobs.
The variant with 2xRJ45 connector is offering you 0-10V or PWM (pulse width modulation) signal for EC fans.
Two internal temperature sensors prevent from overheating on the heat sink and processor side. The controller comes as a finished part and is ready to use. This reliable fan controller comes complete with a sealed water resistant cover, plugs with flap-lids and a low voltage sensor making it perfect for humid rooms. The sensor comes with a 4meter long cable.
Sizes and technical data's:
- Case: WxHxD = 130x92x105mm
- Controller: WxHxD = 160x130x105mm
- Designed for: 10A / 2300W / TRIAC 1x16A
- Volts: 230V / 50HZ
- Digital sensor 5V Measures temperatures from –55°C to +125°C (–67°F to +257°F)
- 0.5°C accuracy from –10°C to +85°C
- Protection class: IP54
Settings range:
- Temperature: 20C° to 30C°
- Minimum speed: off, 20% to -100%
- Maximum speed: 100% to -50%
- Negative pressure: 100% to -50%
Specifications
