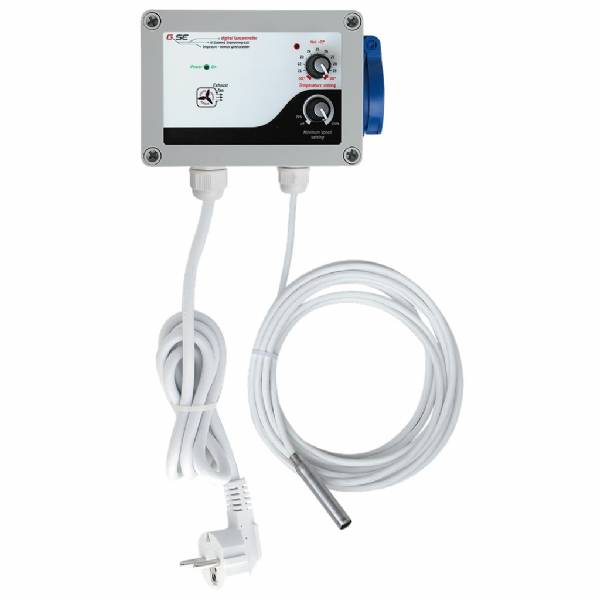

The minimum speed controller is a temperature depended speed controller for ventilated rooms with one ore more fans.
The minimum speed controller keeps the temperature constantly and impedes to run under the set minimum-speed.
It can be easily controlled, adjusting the required temperature and the minimum speed on two knobs.
The controller comes as a finished part and is ready to use.
This reliable fan controller comes complete with a sealed water resistant cover, plugs with flap-lids and a low voltage sensor making it perfect for humid rooms.
The sensor comes with a 4meter long cable and can be extended up to 50meters.
Sizes and technical data's:
Case: WxHxD = 130x92x105mm
Controller: WxHxD = 160x130x105mm
Designed for: 10A / 2300W / TRIAC 1x16A
Volts: 230V / 50HZ
Digital sensor 5V Measures temperatures from –55°C to +125°C (–67°F to +257°F)
0.5°C accuracy from –10°C to +85°C
Protection class: IP54
Settings range:
Temperature: 20C° to -30C°
Minimum speed: off, 20% to -100%
