Less than 5 seconds to be ready!
The Secret Jardin DF16 air extractor has been designed to fit in grow boxes with the DF (Ducting Flange) system that allows clip-on installation without tools. This range of air extractors can also be used conventionally by adding two DF16-100, -125 or -150 mm connectors.

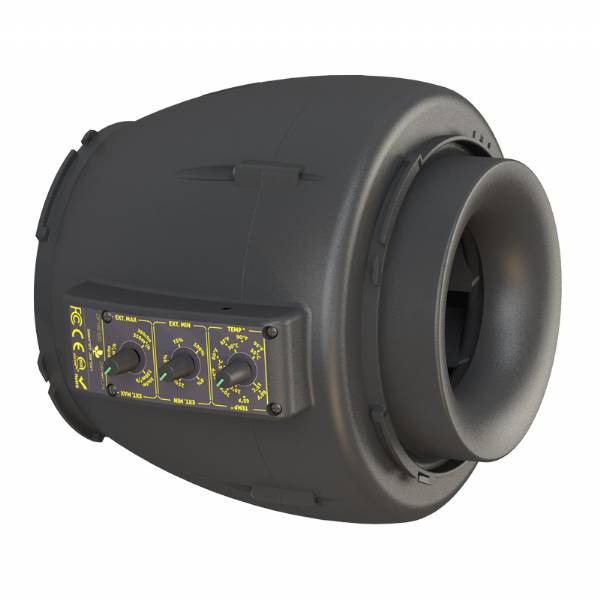

Compact, high-tech air extractor
The control interface on the motor allows you to select temperature, minimum extraction and maximum extraction to optimally regulate your growing environment. The 24-volt EC motor allows you to adjust the extraction speed and thus save 30-40% energy compared to AC extractors.
Quick connection
Once the extractor is installed, simply connect the corresponding filter to your cultivation area. Its high capacity activated carbon CTC80 from Secret Jardin guarantees optimal protection for a long time.
Model |
Air flow |
Power |
Measurements |
Weight |
Noise at 70cm |
Filter* |
DF16E150 |
50/100/150 m3/h |
24Vdc / 0.6A / 15W |
22 x 18 x 10cm |
0.8 kg |
50m3/h - 20 dB 100m3/h - 40 dB 150m3/h - 55 dB |
DF16F100 DF16F150 |
DF16E350 |
150/250/350 m3/h |
24Vdc / 1.5A / 35W |
25 x 25 x 21cm |
1.5 kg |
150m3/h - 36 dB 250m3/h - 54 dB 350m3/h - 61 dB |
DF16F250 DF16F350 |
*Purchasable separately
Specifications
Manufacturer |
Secret Jardin |
Volt  |
230 Volt |
Extract capacity |
150 m3/h |
Temperature Controller |
Yes |
Attachments
Scheda Tecnica / Data sheet Estrattori Secret Jardin
Istruzioni montaggio / Assembly Instructions
