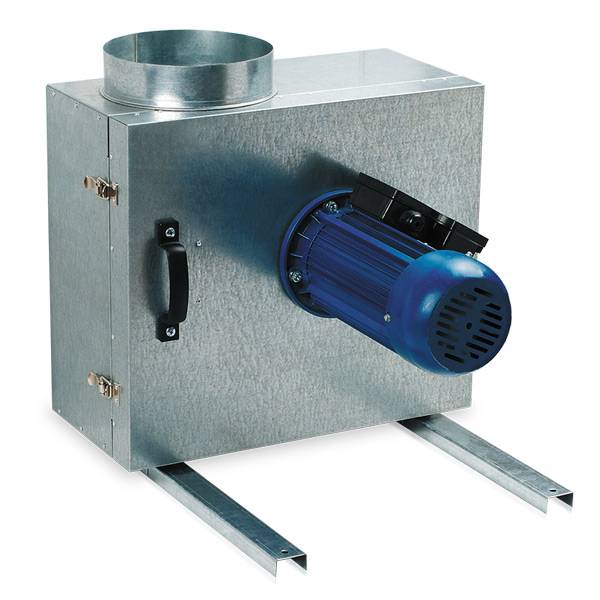

Estrattore elicoidale - Blauberg ISO-K 315 4E

  • PRODUCT: 38170
Save -20%
€ 979,00
€ 783,20
Order now and pay with credit card or paypal. The goods will be given to the courier today
  • Fast Orders Express Shipment

    FREE shipping for orders from 150€,
    Orders travel in discreet packs, without logos and with express delivery within 24/48 hours.

  • Payments 100% Secure

    Quick and secure shop with SSL and https
    Choose the easiest payment, the information sent and received will remain private.

  • Only Original Products

    Here are just original products
    In addition to our pre-post sales assistance, you can count on the manufacturers guarantee.

This offer expires: Till stock lasts

The best centrifugal motor for kitchen hoods

Air extractor: for kitchen hoods and metal industrial workshops

The BLAUBERG Iso-K extractor with centrifugal motor is the best suction system for heavily polluted air with temperatures up to +120 ° C in conditions of high resistance. Specific for large-scale closed environments such as industrial kitchens, baking rooms and metal processing workshops.

Technical features

The Blauberg is made of galvanized steel internally filled with a 50 mm thermal and acoustic layer of non-flammable mineral wool and the fan body is installed on a support frame with integrated vibration isolators.

  • The motor is one or three speed with short circuit rotor and centrifugal impeller with forward curved blades and is equipped with ball bearings for a longer life.
  • Overheating protection thanks to integrated thermal switches with cables for connection to external protection devices.
  • The impeller block of the motor-impeller is fixed to the revolving door which facilitates maintenance of the fan.
  • The fans are available for round air ducts Ø 150, 160, 200, 250, 315, 355, 400, 450 mm.

Assembly

  • The extractor is compatible with round air ducts.
  • The fan must be earthed.
  • The diameter of the tap corresponds to the standard dimensions of the air duct.
  • Wall mounting with the UM Iso -K mounting angle bracket.
  • Available on separate order.
  • External terminal box on the motor for connection to the electrical network.

Operation and speed control

  • Smooth or progressive speed control with an automatic transformer or frequency converter. Both available on separate order.

Warning: It is recommended to keep the Instruction Booklet inside the package, at the time of purchase, where the Product Serial Number is indicated.

Specifications

Manufacturer Blauberg

Attachments

Scheda tecnica
Manuale utente
