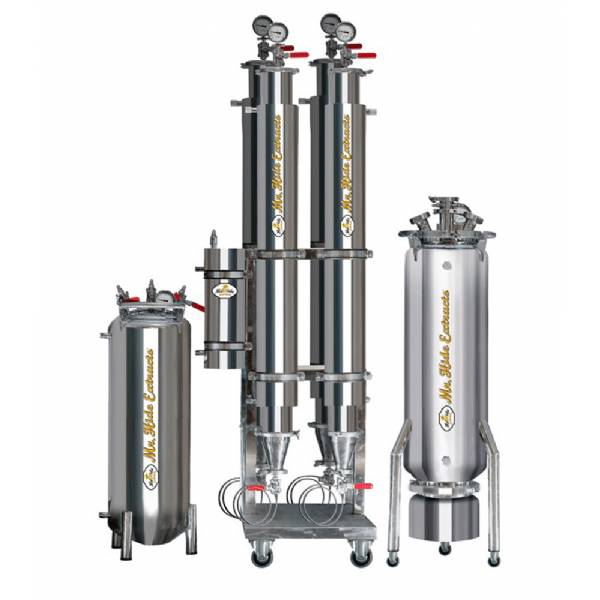

Closed Circuit Extractor - 4400 GR

It uses Isobutane and Propane as solvents.

Mir Hide Extracts® is a closed circuit extraction equipment that uses isobutane and propane as solvents. They are designed to process any type of plant matter, pulling in the active ingredients and terpenes to create a concentrated BHO oil. The gas is stored again after being removed to be reused as many times as necessary, thus avoiding the continued use of gas purchases and increasing our safety thanks to the closed circuit of Mr. Hide Extracts®.

• Mr.Hide Extracts® closed loop machines are entirely made of 314 stainless steel and 316l stainless steel.
• Mr. Hide Extracts® BHO Extractors are manufactured under the strictest controls of
  quality, manufactured, tested and tested for 8 hours at a pressure of 8 bar.
• Extractor components include recovery tank with pressure gauge, collection tank, plant material column (s), seals, hose kit clamps, filters and trolley.

BHO extractors developed by and for professionals in the sector, maximum quality and simplicity

offering:

• Maximum performance.
• 99% gas recovery.
• Eliminates contaminating solvent residues.
• Assembled and tested for 8 hours.
• Safety valve.
• Models equipped with sight glass.
• Made in Spain.
• 4.400 Gr BHO Extractor:
• 4 extraction columns of 104 x 1275 mm
• Recovery tank 254 x 750mm 36L with D / 304 jacket
• Gas tank 254 x 110mm 52L with D / 304 jacket

Components necessary for its operation NOT INCLUDED:

• Vacuum pump. (from 2 CFM)
• Gas recovery. (VRR24L-32 recommended)
