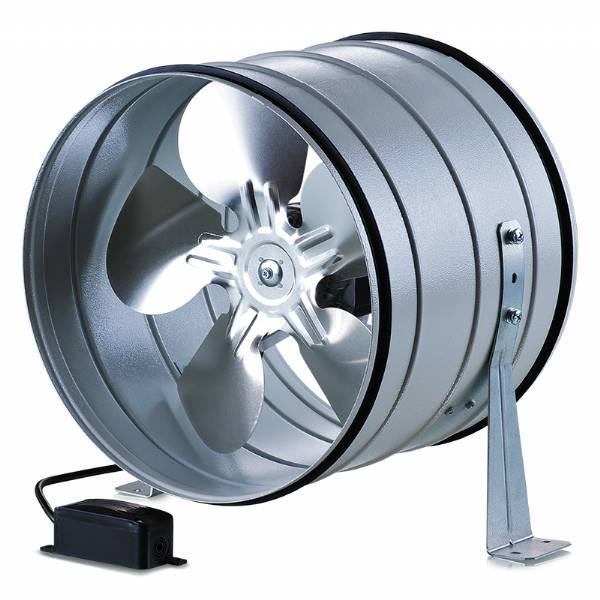

BLAUBERG TUBO MZ 200mm

BLAUBERG TUBO MZ 200mm

BLAUBERG TUBO MZ  200mm supplies and exhausts ventilation systems installed in various premises.



Mounting

• Mounting in air duct or directly to the wall in any position with respect to air flow direction in the system.
• Power is supplied to the fan through an external terminal box with sealed electric lead-in.
• Wall or ceiling mounting with fixing brackets supplied as a standard.
• Polymer coated or galvanized steel reducers are provided for connection of the Tubo-M fans with Ø150 up to 250 mm air ducts. The reducers are not included into delivery list and are available upon separate order.



Parameter	Value
Voltage, [V]	230
Frequency, [Hz]	50
Power, [W]	43
Current, [A]	0.28
Maximum air capacity, [m³/h]	405
RPM, [min-¹]	1300
Sound pressure level at 3 m distance, [dBA]	32
Max. operating temperature, [°C]	40
Ingress protection rating	IP X4



• Supply and exhaust ventilation systems installed in various premises.
• Mounting in ventilation systems with low static pressure requiring high air capacity.
• Compatible with Ø100 up to 200 mm round air ducts.

Design

• Compact steel casing covered with special polymer coating (Tubo-M series) or galvanized steel casing (Tubo-MZ series).
• Aluminium impeller.
• The fan is equipped with a power cord and external terminal block for connection to power mains.

Specifications

Attachments

Blauberg TUBO MZ - Dati Tecnici

---

Blauberg TUBO MZ - Manuale Utente

---
