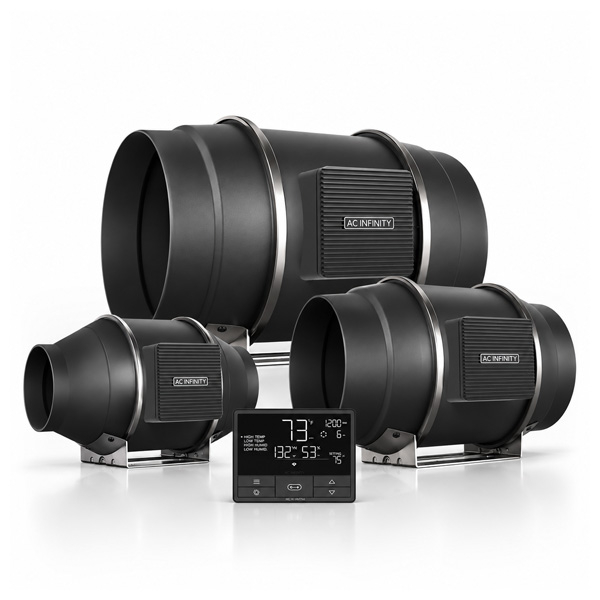

AC Infinity CLOUDLINE PRO T – EC extractor fan with Wi-Fi controller

Smart extractor fan with Wi-Fi controller

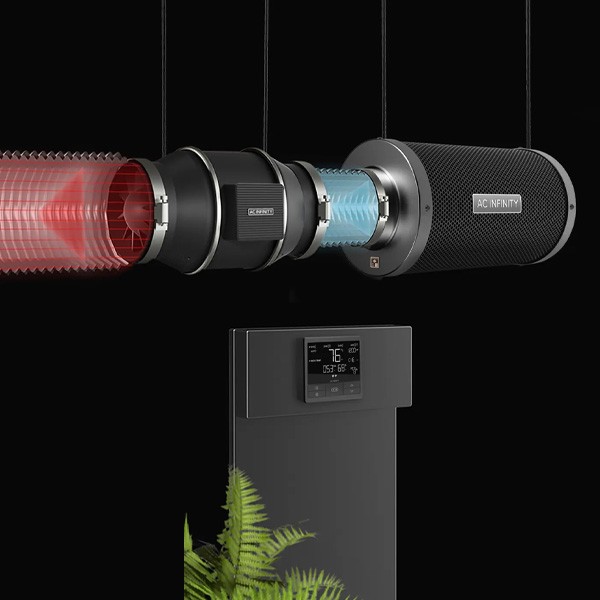

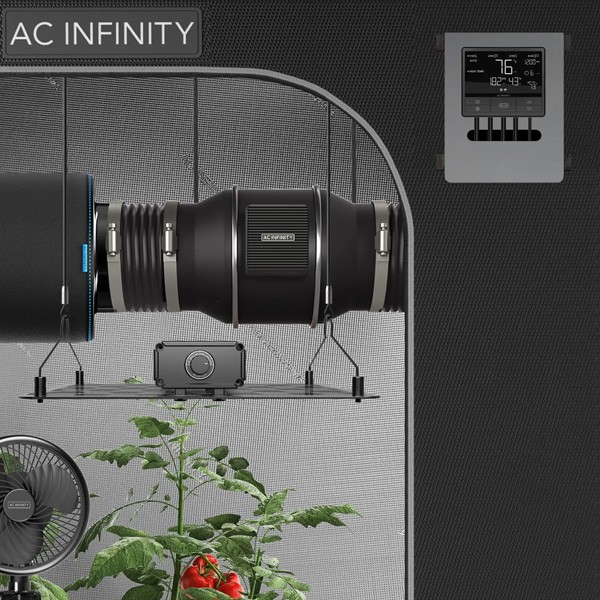

The AC Infinity CLOUDLINE PRO T series comprises in-line centrifugal extractor fans designed for ventilating grow boxes, indoor growing environments and air-exchange systems. The PWM-controlled EC motor and mixed-flow design ensure efficient ventilation, with low noise levels and precise speed control even at low speeds.

PWM EC motor: quiet operation and performance

The ventilation system uses an electronically commutated EC motor with PWM technology, which allows the speed to be adjusted without the typical humming noise associated with traditional AC motors. The stator blades and mixed-flow design help maintain airflow even in the presence of resistance caused by ductwork, bends and activated carbon filters. The double ball bearings, IP44 protection and removable motor unit facilitate installation and maintenance.

Smart Controller 69 PRO with automatic climate control

The CLOUDLINE PRO T series includes the Controller 69 PRO, an intelligent system that regulates ventilation based on temperature, relative humidity and VPD (vapour pressure deficit). The fan speed can be progressively adjusted to the conditions detected by the sensor, with customisable thresholds, minimum speed, timers, cycles and hourly schedules. The controller features four independently programmable UIS ports for managing other compatible devices.

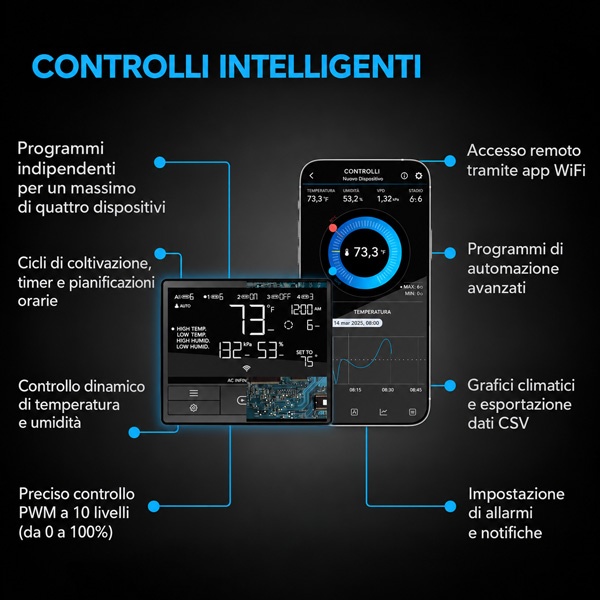

Remote monitoring and control via Wi-Fi

Usingthe AC Infinity app, you can control the system remotely, configure advanced automations, view climate graphs, receive notifications and download recorded data in CSV format. Integration into the UIS ecosystem allows you to coordinate ventilation with other compatible devices for centralised management of the indoor climate.

Features of the CLOUDLINE PRO T series

• Motor: Electronically commutated EC motor with PWM control
• Speedcontrol: 10 speed levels
• Controller included: Smart Controller 69 PRO
• Climate parameters: Temperature, relative humidity and VPD
• Programming: Timers, cycles, time slots and climate automation
• Connectivity: Wi-Fi and Bluetooth via the AC Infinity app
• System: UIS platform with 4 independent ports
• Bearings: Dual ball bearings
• Protection: IP44
• Maintenance: Removable motor unit

Package contents

• 1 AC Infinity CLOUDLINE PRO T air extractor
• 1 Smart Controller 69 PRO
• 1 Temperature and humidity sensor
• 2 Duct clamps
• 2 UIS adaptors
• 2 Suspension straps
• 4 Velcro cable ties
• Kit of screws, wall plugs and mounting accessories
• Cable and probe mounts
