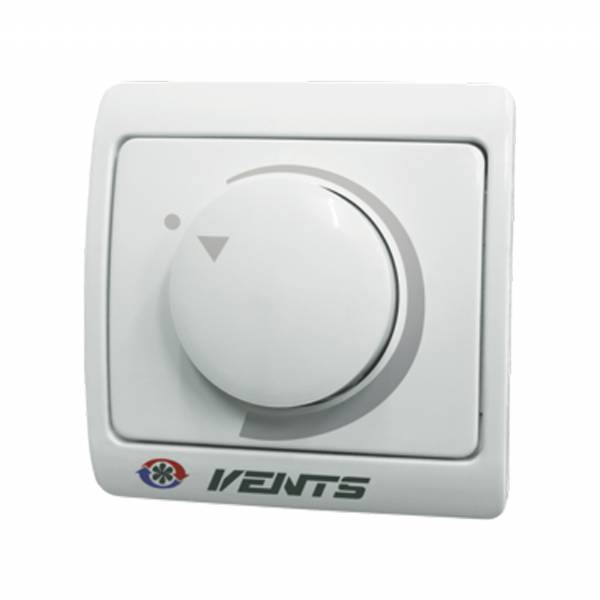

Vents - Speed Controller RS-1-400 - 400W

Precisely control the ventilation of your room for optimal comfort.

The Vents RS-1-400 speed controller is an essential tool for effectively managing airflow within ventilation systems. Designed for single-phase motors, it allows you to regulate the speed of single fans or several units connected in parallel, as long as the total current does not exceed the maximum permitted value.

Its operation is simple and intuitive: it is adjusted by means of a knob that allows the speed to be varied from a minimum to a maximum value. The starting point, i.e. the minimum speed, can be set by means of a potentiometer on the board, ensuring optimal adjustment to suit one's needs. The device is made of a robust plastic casing, making it durable and reliable.

In addition, the Vents RS-1-400 controller is equipped with a removable thermal fuse that protects the motor from overload and a filter that eliminates transient interference, ensuring stable and safe operation. It is designed to be easily mounted inside standard or dedicated junction boxes.

Features

• Voltage: 230V / 50-60 Hz
• Rated current: 1.8 A
• Maximum power supported: 400W
• Dimensions (WxDxH): 78 x 78 x 63 mm
• Maximum ambient temperature: 35°C
• Degree of protection: IP 40
• Weight: 0.11 kg
