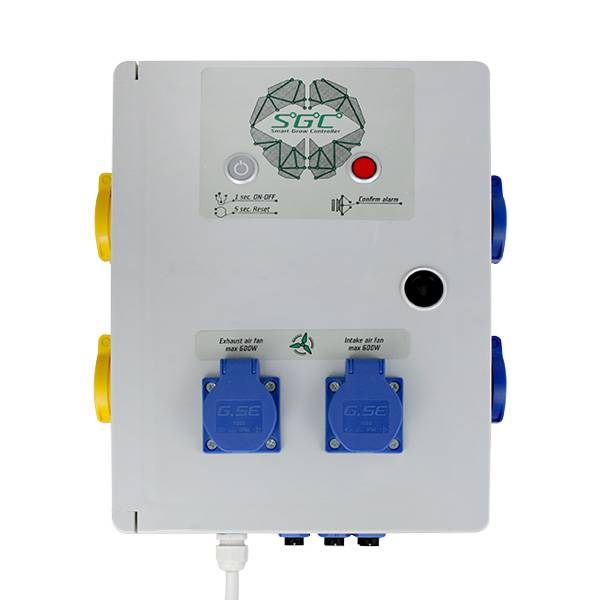

SGC-ONE Smart Grow Controller | Indoor Computer

Your own server to manage all your cultivation

The G-System Smart Grow Controller is your personal server that interconnects and programmes your indoor growing system, such as vertical farming, aquaponics, aeroponics, hydroponics etc.... You can monitor your devices and achieve significant savings in maintenance and operation. You can programme it to do exactly what you want it to do. If there is any function related to indoor growing that you cannot programme... we will do it for you and do it for free!

No Cloud or External Server

The Smart Grow Controller ONE is the software that allows you to connect the SGC to a local wired or wireless hotspot and connect to your local network, providing a worldwide connection via http or VPN. This means that no information will be leaked over the Internet to any cloud server. In the case of emergency systems, events and alerts are sent directly to your email or smartphone.

The GSC can do anything you want, there is not a function you have to give up! It is a stand-alone computer-based controller that does not require the Internet or any cloud server, it works completely autonomously and all data is private and not in some cloud where the government has access.

The GSC can be configured as a wired LAN or W-LAN hotspot depending on how paranoid you are, if you understand networking and its security you can connect it to your home LAN or open a port and access it from anywhere in the world where you have Internet, via VPN or https://. It is multilingual software available in Italian, Spanish, German, English and many other languages.

Connect variable outputs

SmartGrowController ONE is designed to control:- 8 outlets/sockets (with the possibility of 4 electromagnetic ballasts)- 2 Variable AC Fans 2x5A 2300W (with phase speed control from 0 to 100%)- 1 addressing port for sensors, 4 sensor ports (expandable up to 30 sensors and satellites) in total.

The controller can record the data history, so you can see and compare it whenever you want. From the settings you can disable functions such as data logging.

Connect up to 30 sensors and satellites

The Smart Grow Controller ONE comes ready to use with a SGC temperature, humidity and light sensor with 4-metre cable and demo software. You can connect up to 30 different additional sensors and satellites. Install the sensor on one of the address ports of the Smart Grow Controller, then select the sensor within the software. This step is explained in the video: "Connecting Sensors".

Creative programming allows you to connect any sensor to any function, logic ports, events and finally to a socket/output very easily by drawing connections with the mouse. Overdrive Automatic function manually at any time from anywhere with any device, smartphone, tablet, computer. How to set up the sensors is explained in our video: 'Environment Programming'.

Backup UPS (mini uninterruptible power supply)

Sudden power failures can cause loss of data or potential damage to hardware. The backup UPS is sufficient to keep the Smart Grow controller running for 30 seconds during short interruptions and provides sufficient runtime to safely shut down the controller during prolonged power outages. When power is restored, the controller automatically starts working and processes continue where they left off.

Technical data

• 4 relays/socket for magnetic ballast up to 3600W
• 4 sockets/relays up to 3600W
• 2 Variable AC relays/sockets 2x1'150W (phase controlled modulator)
• Protection class IP54
• AM335x 1GHz ARM® Cortex-A8 processor
• 512MB DDR3 RAM
• 32GB SD card
• UPS 6x1.5V AA battery holder (batteries not included)
• Software recommendations:
  • Windows 10 or lower, computer with WIFI
  • Firefox or Chrome browser
  • For MAC and Safari we recommend being an advanced user capable of scanning networks

Included in the package: SGC-ONE Smart Grow Controller 10 outputs; Temp Sensor, Humidity Sensor, Light Sensor, all with 4m cable; Free demo software
