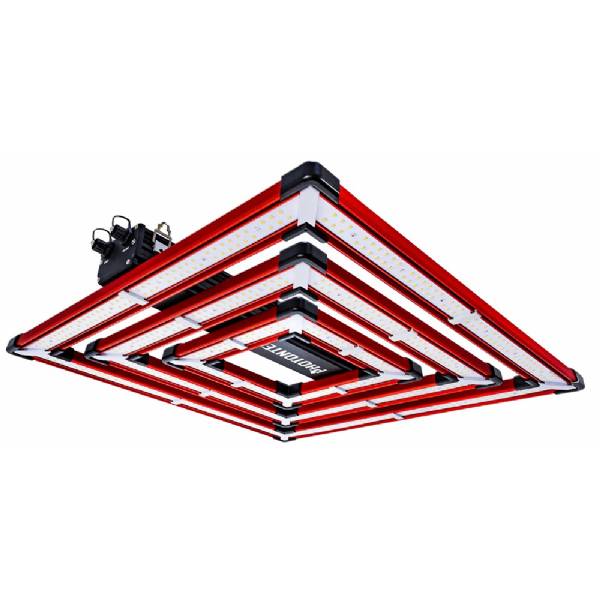

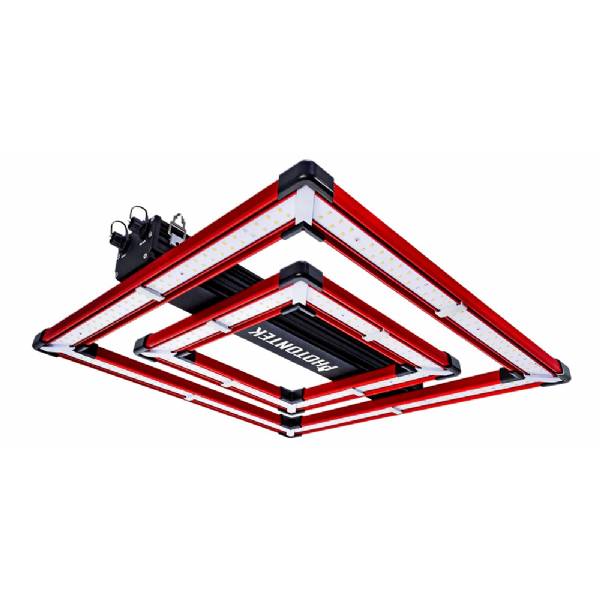

Photontek Pro LED grow lamp

Highly efficient Full Spectrum LED system optimised for full cycles

The Photontek SQ200W Pro LED is a state-of-the-art lighting fixture designed to maximise output in growing spaces as small as 2.6'x2.6' (approx. 80x80 cm), providing homogeneous, high-intensity illumination.

Optimum Performance and Design

• Outstanding Efficiency: The lamp boasts a high luminous efficacy (Photon Efficacy) of 2.5 micromol/J and a photon flux output (PPF) of 508 micromol/s.
• Homogeneous Distribution: The square bar design of the SQ Pro line ensures uniform light distribution (homogeneous light spread) close to the canopy, eliminating hotspots and ensuring excellent penetration into the vegetation.
• Diodes and Spectrum: Uses state-of-the-art top-bin diodes (288 Whites 4000K, 12 Reds 660nm and 24 Distant Reds 730nm), creating a Full-Spectrum optimised for all growth cycles (propagation, vegetative and flowering).
• Durability and Protection: Thanks to the thin layer of Clear Glue covering the rods, the lamp achieves IP65 (waterproof and dustproof), prolonging diode life and corrosion resistance.

Advanced Technology and Control

• Passive Cooling: Advanced thermal management relies on a heat sink that uses natural convection, eliminating the need for fans. This results in zero noise and a longer product life (Lifetime of 60,000 hours) as there are no moving parts.
• Dimmability and External Control: The lamp is equipped with an included 0-10V dimmer, which allows manual adjustment of the power to OFF-25%-50%-75%-100% levels without loss of efficiency.
• Universal Compatibility: It can be externally controlled either with the P-TEK Digital Lighting Controller (for functions such as light timing, Sunrise & Sunset Mode and temperature control on up to 100 luminaires) or with any other control system that uses the 0-10V output signal (via RJ to 0-10V adapter if necessary).

Main Technical Specifications

Specifications

Attachments

Dati tecnici

---
