Photontek - SQ300W Pro LED grow lamp

Full Spectrum 310W LED system with an efficiency of 2.7 umol/J, optimised for full cycles in 1 square metre growing areas and universal control

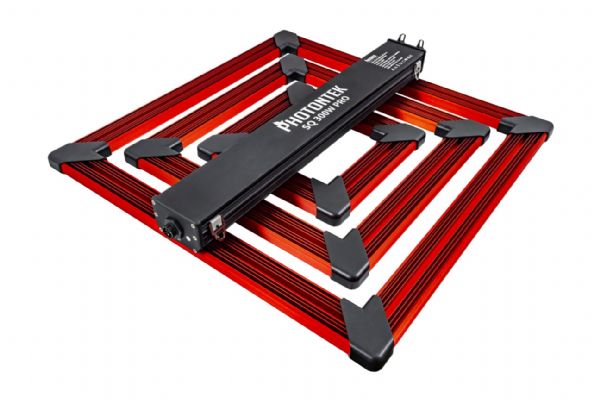

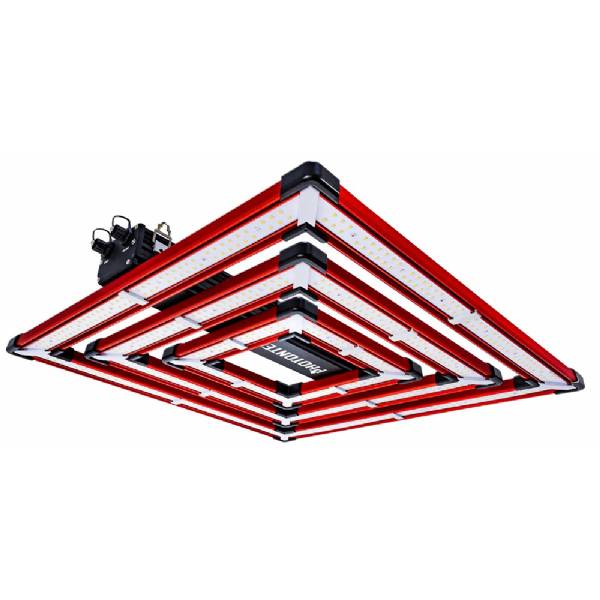

The Photontek SQ300W Pro LED is a state-of-the-art lighting fixture designed to offer maximum performance and superior efficiency in grow spaces up to 100x100 cm (corresponding to 3.3'x3.3'). It is part of the SQ Pro line, known for its high-quality components and high light output.

Optimum Performance and Innovative Design

• Maximum Efficiency: The lamp boasts a luminous efficacy (Photon Efficacy) of 2.7 micromol/J and an impressive photon flux output (PPF) of 816 micromol/s.
• Homogeneous Distribution: The square bar design (SQ Pro line) creates a homogeneous and uniform light spread close to the canopy, ensuring excellent penetration into vegetation without generating hotspots or excessive heat.
• Diodes and Spectrum: Uses a combination of top-bin diodes (576 Whites 4000K, 24 Reds 660nm and 24 Far Reds 730nm), providing a calibrated Full-Spectrum for all growth stages from propagation to flowering.
• Durability and Protection: The LED bars are protected by a thin layer of Clear Glue that ensures 99% light transmittance and provides IP65 (water and dust resistance) protection, for increased longevity (Lifetime of 60,000 hours).

Advanced Technology and Control

• Silent Cooling: Thermal management is by passive cooling (heat sink and natural convection). The absence of fans ensures quiet operation and significantly improves the life of the equipment.
• Dimmability and External Control: The lamp is fully dimmable ( OFF-25%-50%-75%-100% levels via 0-10V dimmer included) without compromising efficiency.
• Universal Compatibility: It can be controlled externally via the P-TEK Digital Lighting Controller (for time control, automated dimming in 1% increments, temperature safety control and Sunrise & Sunset Mode for up to 100 luminaires) or with any other control system that supports the 0-10V signal (using an adapter if necessary).

Main Technical Specifications

Specifications
