Lighting Adapter-T for Hydro-X System - Trolmaster

Dual-channel control interface for advanced management and dimming of professional LED systems

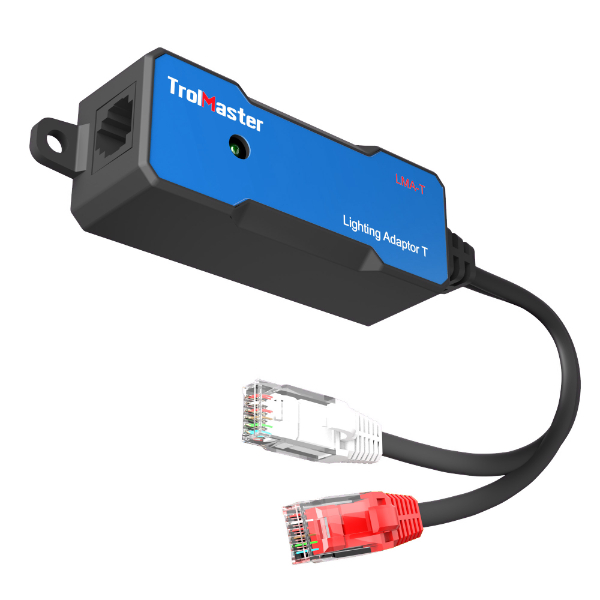

TrolMaster's LMA-T adapter is the essential communication interface for those using the Hydro-X controller (HCS-1) in combination with state-of-the-art LED lighting systems, in particular the ThinkGrow line. This device allows the full potential of low-voltage control to be exploited, translating the controller's signals into protocols that the lamps can understand.

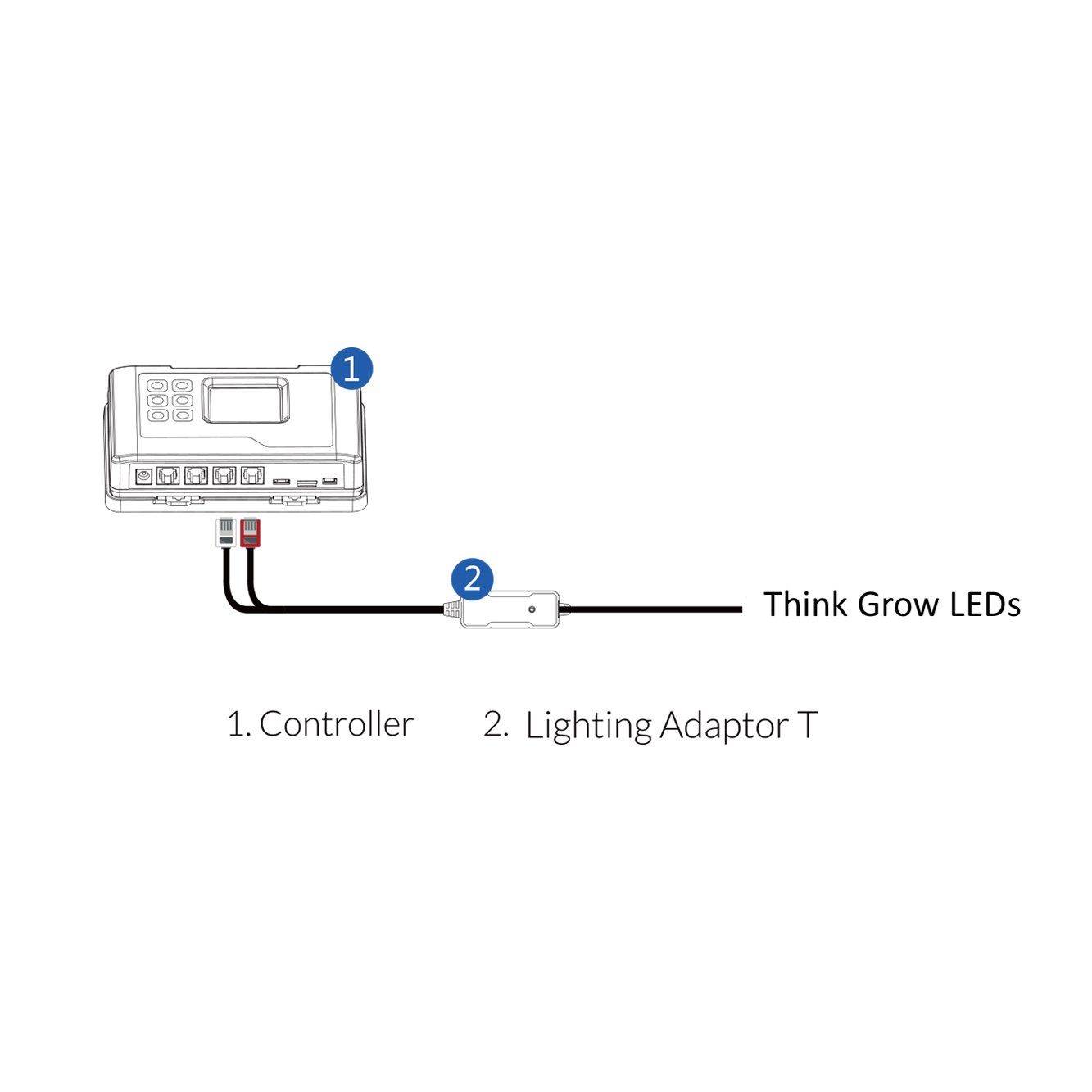

The distinguishing feature of the LMA-T is its ability to manage two independent channels. By connecting it to the Line 1 and Line 2 ports of the Hydro-X system, the grower can set differentiated on and off times, as well as adjust dimming intensity separately for full spectrum LEDs and the second channel dedicated to reds. This function is crucial for those wishing to customise the light recipe during the different stages of plant development, optimising morphological response and resin production.

Installation is extremely simple thanks to the plug-and-play configuration and daisy-chain wiring. A single adapter can send the signal to up to 256 ThinkGrow LED luminaires. The package also includes an adapter cable from RJ12 to waterproof connector, ensuring a secure connection protected from the humidity typical of professional grow rooms.

Features

• Brand: TrolMaster
• Model: Lighting Adapter-T (LMA-T)
• Controller Compatibility: Hydro-X (HCS-1)
• Lighting Compatibility: LED ThinkGrow
• Number of Channels: 2 (Full Spectrum and Red)
• Maximum Capacity: Up to 256 LED units per adapter
• Connection: Plug-and-Play via RJ cables
• Included in delivery: LMA-T adapter, RJ12 to watertight connector conversion cable
• Functions: Individual dimming, separate ON/OFF cycle setting
