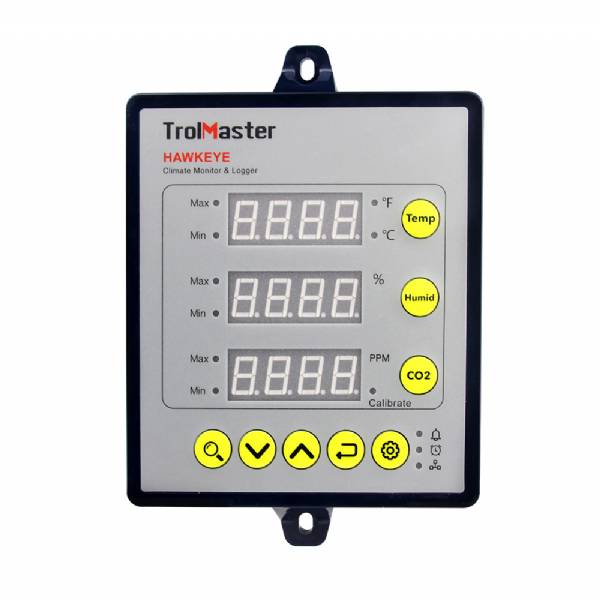

Hawkeye Monitoring System - 3-in-1 Hawkeye

By temperature, CO2 and humidity

Hawkeye from TrolMaster offers an inexpensive and accurate method of monitoring an enclosed space. Some users simply need to monitor temperature, humidity, CO2 and VPD levels without the need to actually control any devices. Hawkeye is specifically designed to be used as a backup monitoring system to ensure environmental conditions remain within acceptable limits. Hawkeye is COMPLETE with everything needed to measure temperature, humidity, CO2 and also provides an accurate VPD measurement. (Vapor pressure deficit) The user can select the minimum and maximum allowed (limits) for the temperature, humidity and CO2 levels. If these limits are exceeded, Hawkeye will alert the user via the TrolMaster APP and by audible and visual alerts displayed on the digital LED display. Hawkeye is a standalone monitoring system that can be used with or without an internet connection. However, once it is connected to the internet, it will automatically start recording and displaying trends and data from sensors on an easy-to-read graph within the TrolMaster APP. Local storage of all recorded data can also be recalled from the unit when a MicroSD card is inserted into the Hawkeye.

Product features:

• LED display, easy operation
• 3-in-1 temperature / humidity / CO2 (PPM) sensor
• APP accessibility for smartphones
• IoT connectivity
• Alarm function
• Data logging

Technical features:

• Input voltage: 100 ~ 240V AC, 50 / 60Hz
• Maximum input current: 0.6A
• Maximum output voltage / current: 24VDC / 0.5A
• Temperature range: 0-59.0 ° C
• Temperature accuracy: ± 0.20 ° C
• Humidity range: 5-95% RH
• Humidity Accuracy: ± 7%
• CO2 range: 0-2000 PPM
• CO2 Accuracy: ± 30 PPM
• Work environments: temperature 0-50 ° C, humidity = 90%
• Package Dimensions: 275mm (L) x 165mm (W) x 70mm (H)
