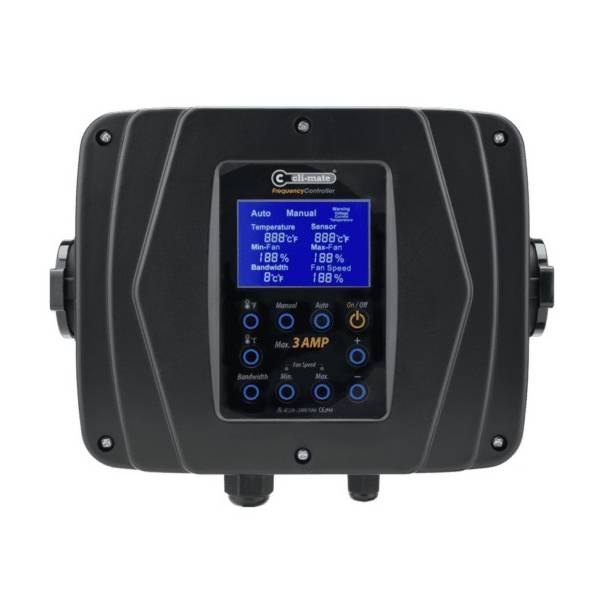

Frequency Regulator (3amp) for Extractors - CLI-MATE

Vibration Free Air Handling Unit

Frequency regulator for extractors (3amp) by CLI-MATE is an innovative frequency regulator in the field of climate control. The electronic frequency inverter is variable speed with a temperature sensor that adjusts the speed of the electric motor without problems, without vibrations, therefore very quiet. The frequency of the applied signal is changed, the voltage varies with it, and the torque remains the same. In other words, the frequency regulator adjusts the frequency (Hz) to manage, through a temperature sensor, the speed of the electric motor.

Control unit for adjusting the frequency of the extractors based on the set temperature, thanks to the control of the frequency of the electric current, the control unit completely eliminates the noise and vibrations generated by the extractors when weakened.

Features
Frequency Regulator (3amp) - CLI-MATE is an exceptional energy efficient solution, applicable in most situations.

• Maintenance free
• Simple operation
• First stand-alone Plug & Play inverter
• Suitable for use in a wide range
• Optimal and precise speed control
• Manual and automatic mode
• Silent

Technical specifications

• Temperature range: 5-55 ° C
• Power supply: 220 / 230V - 50Hz
• Switching differential: 1 ° C per step (bandwidth)
• Protection: IP44
• Dimensions: 250 x 190 x 140 mm
• Motor rated power: 0.1-2.7 kW
• Operating temperature: 0 ° C to + 40 ° C
• Output frequency: 5-50Hz
• Overload: 150% for 60 sec.
