Dimlux - Expert series 1000w reflector - DE EL UHF

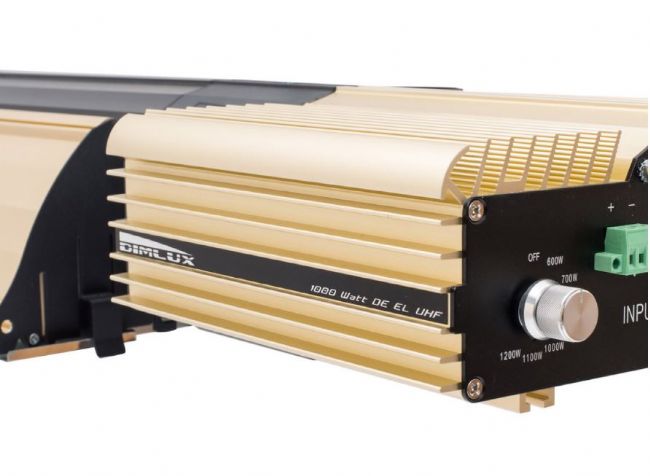

DimLux Expert Series electronic ballast

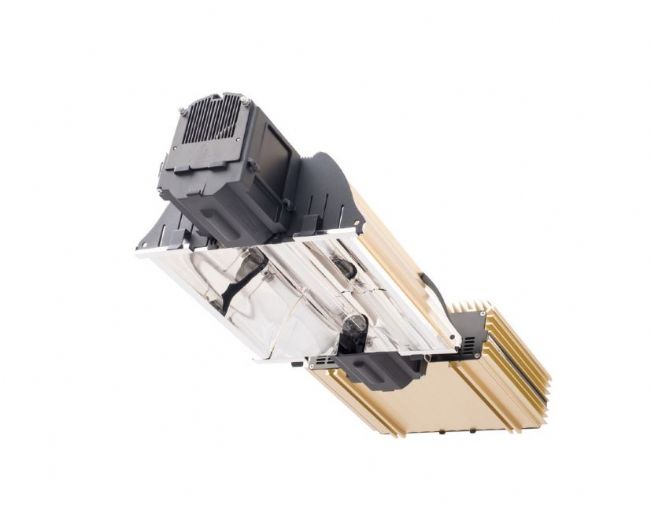

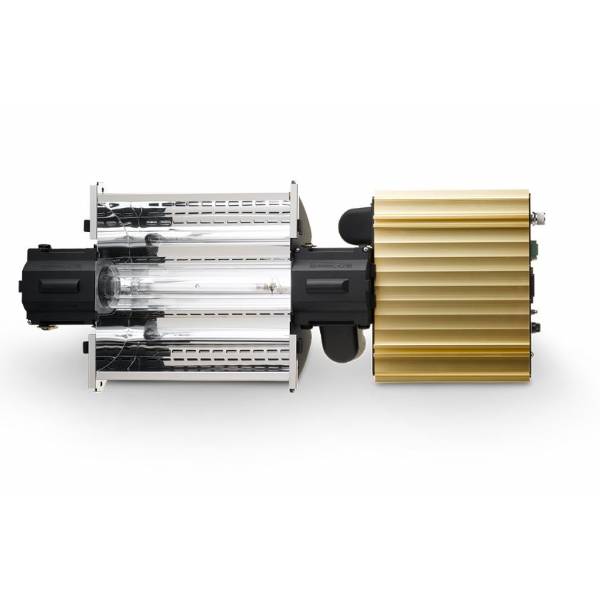

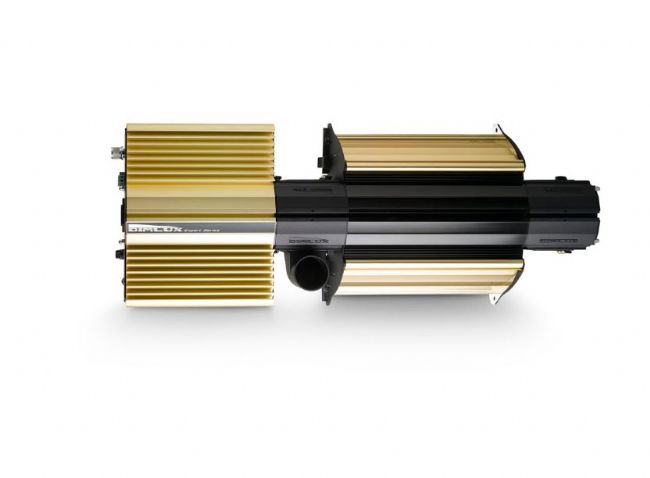

The DimLux Expert Series 1000W DE EL UHF electronic projector is a complete fixture that includes the Alpha Optics reflector. This reflector is designed according to the Single Bounce Clear Sight (SBCS) principle and is equipped with Miro Silver mirrors. As a result, the maximum possible efficiency (98%) of all the reflectors available for horticulture is achieved.

Versatile and resistant

Equipped with adjustable side reflectors for better overlap and to minimize wall losses. Thanks to the open reflector design, the lamp is passively cooled, which is an advantage for the life and efficiency of the lamp.

• The nanotub devices are equipped with 2x50mm sockets that can be used to significantly reduce the ambient temperature by blowing 200 m3 / hour of cold air through each device.
• Using a nanotube, the air can be extracted in parallel from the fixture, the lamp will always maintain the ideal temperature to maximize efficiency and life.
• A 20% increase in lumens can be achieved, this is only possible if the lamp is actively cooled.

Technical specifications:

• Suitable for: 1000W 400V EL UHF
• Production: 600-1200 Watt
• Connection: 230V
• Overdrive: 20%
• Soft Start: Low cue for use without Maxi Controller and Zero start (no cue) for use with the Maxi Controller
• Soft Dim: Yes
• Dim button: 7 levels of brightness and off mode. It can be switched on and off via the Maxi Controller without continuous dimming
• Nanotube: yes
