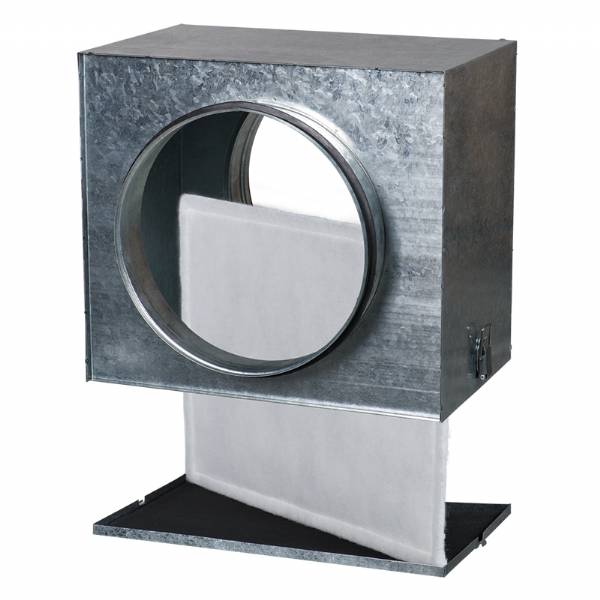

Blauberg KFBK Filter Box 200mm G4

Used as pre-filters installed upstream to more efficient filters

 Blauberg KFBK Filter Box 200mm can be used as pre-filters installed upstream to more efficient filters. It is designed for purification of supply or exhaust air in ventilation and air conditioning systems installed in various premises

• Designed for protection of air ducts, heat exchangers, fans, controls and other ventilation system equipment against dust pollution.
• Prevent contamination of walls and ceilings located near the system.
• Can be used as pre-filters installed upstream to more efficient filters.
• Compatible with Ø100 up to 315 mm round air ducts.

Design

• Galvanized steel case.
• Airtight connection of the filter-box with air ducts due to connecting flanges with a rubber seal.
• Equipped with a flat filter cartridge made of synthetic non-woven cloth with filtering class G4.
• Filter cartridge is fixed on a steel wire frame.
• Quick access to replaceable filter cartridge due to lever locks on the casing

Type	Dimensions [mm]
	D	B	H	L	L1
KFBK 200	199	320	279	275	183



Others formats:

Blauberg KFBK Filter Box 250mm G4 - € 85,90

Blauberg KFBK Filter Box 315mm G4 - € 103,80
