Aquamaster - C800 Pro - Inline Controller pH, EC, PPM, TDS & Temp.

  • PRODUCT: 70410
€ 929,00
+
-
Add to cart
The product is currently not available.
  • Fast Orders Express Shipment

    FREE shipping for orders from 150€,
    Orders travel in discreet packs, without logos and with express delivery within 24/48 hours.

  • Payments 100% Secure

    Quick and secure shop with SSL and https
    Choose the easiest payment, the information sent and received will remain private.

  • Only Original Products

    Here are just original products
    In addition to our pre-post sales assistance, you can count on the manufacturers guarantee.

Precise control of the nutrients goes directly into the pressurised pipes, ensuring stability and maximum system reliability.

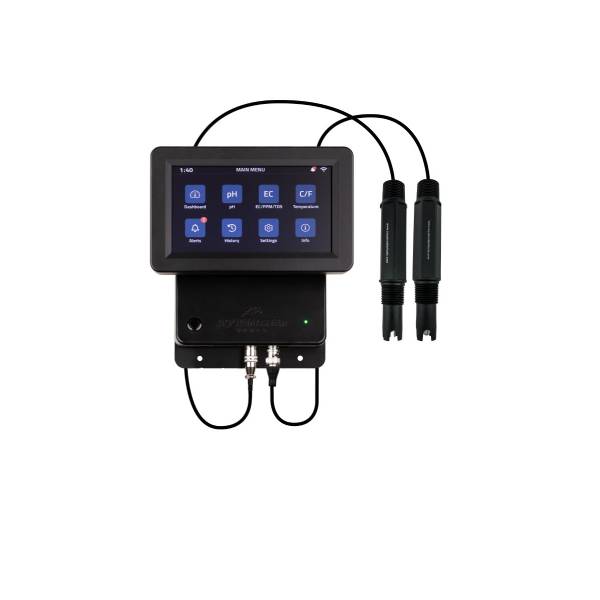

The Aquamaster C800 Pro Inline 6 Bar is the most advanced and robust version of our intelligent controller, specifically designed for direct integration into pressurised pipelines of irrigation and hydroponics systems. Developed for professional and industrial cultivation, this instrument ensures continuous measurement and automatic adjustment of pH and EC even under high pressure conditions.

The device measures five essential parameters (pH, EC, PPM, TDS and Temperature) and automatically doses nutrient and corrective solutions when values deviate from desired levels.

Distinctive Feature: In-Line Electrodes (6 Bar)

What differentiates this model is the inclusion of high-pressure in-line electrodes (up to 6 Bar), ideal for installation in pipes.

  • The electrodes have 3/4-inch male threads, perfect for installation in saddle clamps.

  • This configuration ensures accurate measurements directly in the pressurised water flow, essential for real-time system control.

Modular Control Structure

The C800 Pro Inline maintains the flexible dosing architecture, with two separate UTP outputs:

  • One port for connecting a single pump for pH control.

  • One port for connecting 1 to 5 pumps for nutrient (EC) dosing.

The controller can operate in combined mode (pH + EC) or as an independent pH or EC controller.

Smart Control and Remote Access

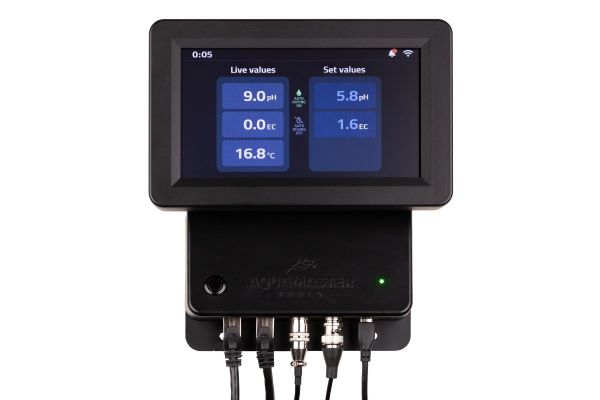

Management of the system is via the intuitive colour touchscreen or, for maximum convenience, via theAqua Master Tools App (free for iOS and Android), which offers:

  • Historical Graphs: View measurements and alarms for up to 12 months.

  • Notifications: Instant alarms on your smartphone in case of parameter deviations.

  • RemoteManagement: Remote adjustment of set points, alarms, dosing programmes (can be saved in the cloud) and multi-device management.

Important Note: Modular dosing pumps are not included and must be purchased separately.

Package Contents

  • C800 Pro controller

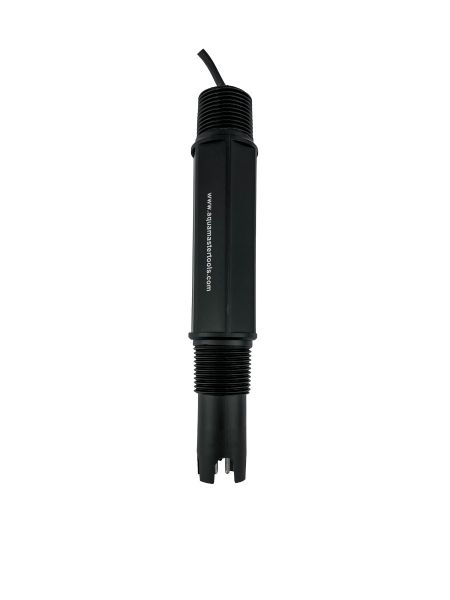

  • Inline pH electrode (6 Bar, 3/4 male)

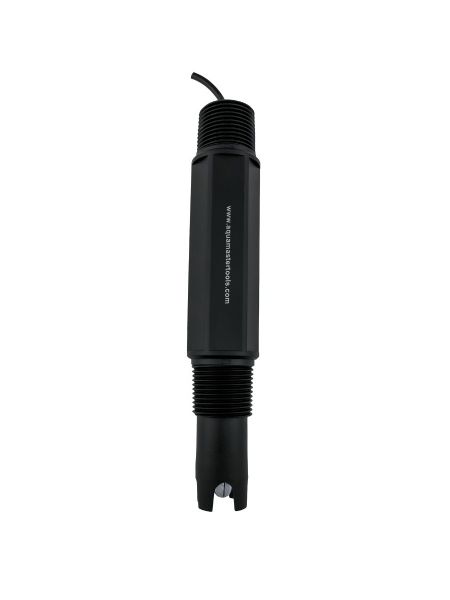

  • Inline EC electrode with temperature sensor (6 Bar, 3/4 male)

  • International power adapter

  • User's manual

Features

Parameter Detail
Functions pH, EC, TDS, PPM, Temperature
Max. Electrode Pressure 6 Bar
PPM Scale 700 PPM
pH Range 0.00 ~ 14.00 pH
EC Range 0.00 ~ 20.00 mS/cm
Temperature Range 0°C ~ 50°C (32°F ~ 122°F)
pH Accuracy plus or minus 0.1 pH
EC/TDS/PPM Accuracy plus or minus 2% F.S.
pH calibration 1, 2 or 3 points automatic (4.0-7.0-10.0 pH)
EC calibration 1 point automatic (1.4-3.0-12.88 EC)
ON-Time dosing 1 to 900 seconds
Dosing OFF-Time 0 to 60 minutes
Water resistance IP63 (main body), IP67 (electrodes)
Power supply AC 85 ~ 260 V, 50 ~ 60 Hz
Dimensions / Weight 94 x 210 x 55 mm / 656 grams
