Aqua Master Tools - Group C30 3x peristaltic pump for nutrient dosing

Triple peristaltic pump system for automated nutrient control and modular dosage expansion

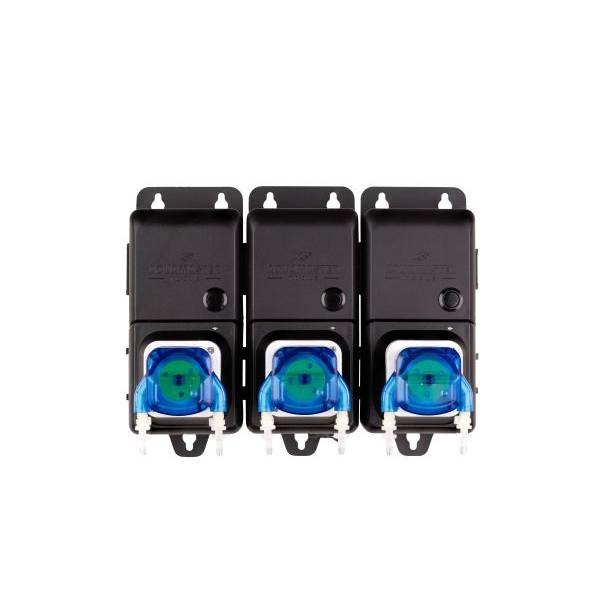

The Aqua Master Tools C30 unit is the beating heart of a professional, automated fertigation system. Designed to ensure accurate nutrient dosing (EC), this unit integrates three independent peristaltic pumps, each capable of delivering 1.5 ml of solution per second. The C30 is dedicated exclusively to fertiliser management and is not intended for pH adjustment.

Expansion Capability and Modularity

• With C10: Allows you to manage a total of 4 nutrient lines.
• With C20: Allows a maximum of 5 nutrient lines (EC) per controller.
• Mechanical interlocking: The integrated side rail allows the modules to be physically joined together to create one solid and uncluttered dosing station.

Manual Control and Maintenance

Each pump is equipped with an individual manual priming button. This feature is essential for initial set-up operations, allowing tubes to be filled without software intervention, and for quickly emptying the circuit during cleaning or nutrient changes. Peristaltic technology ensures a long operating life, keeping operating noise below 60 dB.

Features
