AC Infinity Soil Sensor – Soil Probe for the AI+ Controller

Substrate moisture and saturation sensor with IP67 protection

The AC Infinity AI Soil Sensor is a digital probe for measuringsoil moisture and saturation, designed to work with the AC Infinity AI+ Controller. It allows you to monitor the moisture conditions of the growing medium in real time and to control compatible irrigation devices based on the readings taken. The sensor is suitable for indoor cultivation in grow boxes, fabric pots and containers filled with potting compost, thanks to its IP67 water-resistant construction and removable probe for deep insertion.

Substrate monitoring and smart irrigation automation

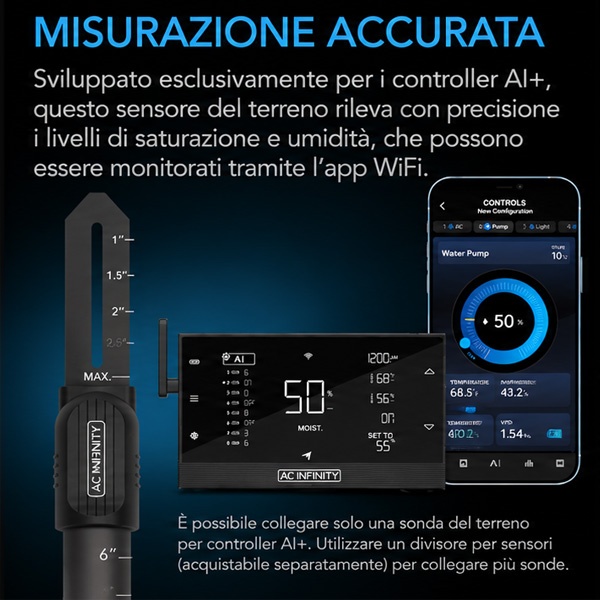

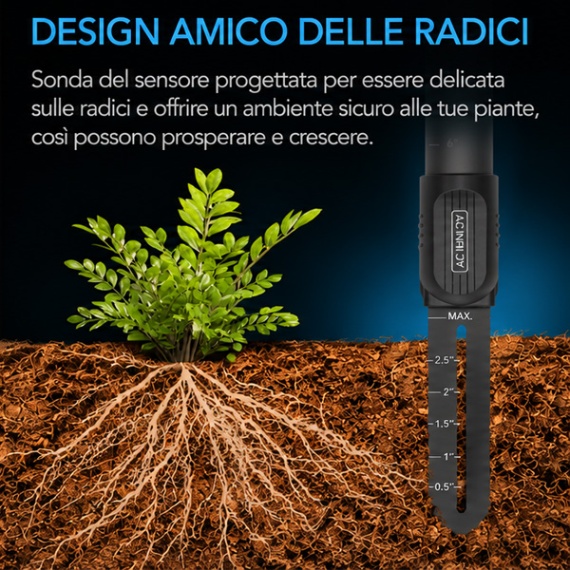

The probe measures moisture and saturation levels with an accuracy of ±5% and updates every second. When connected to the AI+ CONTROLLER, it allows you to view measurements via the AC Infinity app over a Wi-Fi network, receive notifications and configure the automatic activation of compatible irrigation devices. The removable, graduated rod allows the sensor to be securely positioned deeper into the soil, whilst the tip design is engineered to minimise disturbance to the roots. A single soil sensor can be connected directly to the controller; to add further sensors, a dedicated splitter is required, which is sold separately.

• Product: Soil Sensor
• Model: AC-SLS3
• Type: digital soil sensor
• Measured parameters: substrate moisture and saturation
• Accuracy: ±5%
• Update frequency: 1 second
• Material: fibreglass
• Sensor dimensions: 3.6 x 7.2 x 1.4 cm
• Cable length: 3.66 m

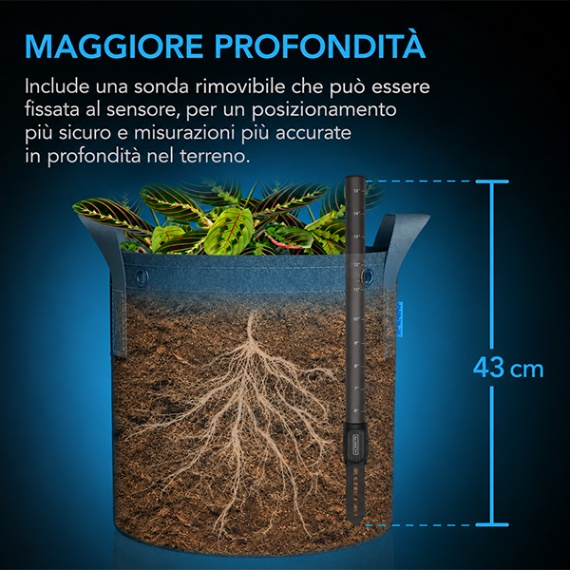

• Depth with probe: up to approx. 43 cm

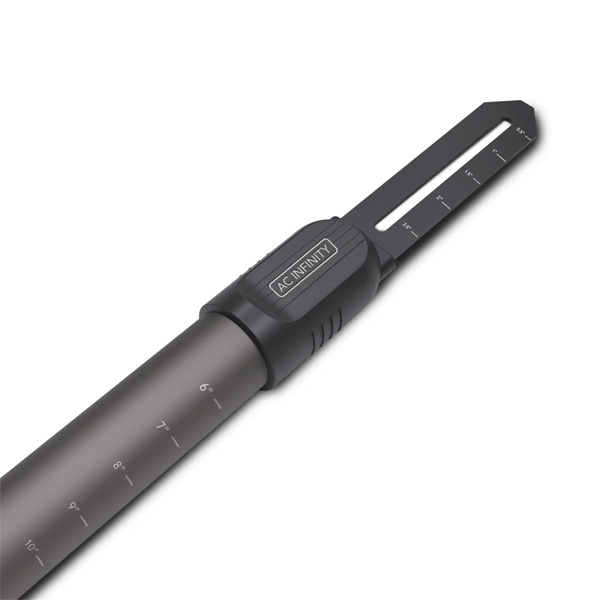

• Rod: removable and graduated
• Protection rating: IP67
• Compatibility: AC Infinity AI+ CONTROLLER
• Remote monitoring: via the AC Infinity app and a controller connected to Wi-Fi
• Connection: 1 soil sensor per controller, expandable via a dedicated splitter

Specifications

Attachments

Quick Start Soil Sensor

---
