AC Infinity – Mini Propagator Greenhouse for 40 Plants with LED Lighting + Mat

Mini greenhouse for seed germination with Samsung EVO LEDs and a heating mat

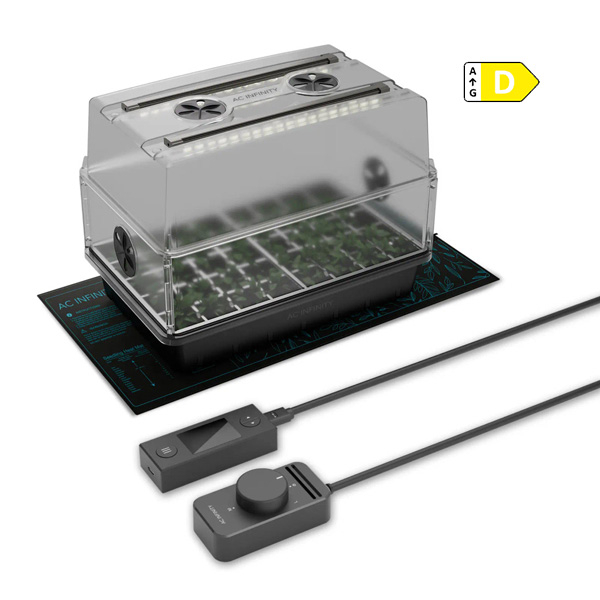

The AC Infinity Propagation System 5x8 is a greenhouse kit for germination and cuttings, designed for plant propagation in indoor growing environments. It comprises a 40-cell mini-greenhouse with an extendable transparent dome, two full-spectrum LED bars featuring Samsung LM301H EVO diodes, a 20W heating mat and dedicated controllers. The system allows you to control the light, the heat at the base of the containers and the air circulation via adjustable ventilation openings, creating a microenvironment suitable for seed germination and the rooting of cuttings. The modular design allows you to increase the height of the propagation chamber as the seedlings begin to grow.

Germination and cuttings with Samsung LM301H EVO lighting and bottom heating

The mini-greenhouse incorporates two LED bars totalling 28W, with 12 Samsung LM301H EVO diodes per bar, characterised by a light spectrum comprising colour temperatures of 3000K and 5000K. The bars can be inserted into the dome’s sockets and controlled via a controller with a programmable timer and four light intensity levels. The lighting system provides light for young plants without the need for an external lamp, whilst the 3mm transparent cover allows light to pass through and enables you to monitor the seedlings’ growth directly.

The 20W heating mat, measuring 25.4 x 52.7 cm, uses a far-infrared heating film to distribute heat evenly beneath the growing tray. The stated surface temperature is approximately 27–31°C, with continuous adjustment via a dial. The heat from below helps maintain thermal conditions favourable for germination and root formation, especially when the ambient temperature is lower than that required for propagation.

The extendable dome allows the overall height to be adjusted from 23.1 cm to 27.2 cm, increasing the space available for seedlings and cuttings. The two integrated ventilation openings become four when the extension is fitted, allowing you to regulate air circulation and humidity inside the greenhouse. The system includes a 40-cell seed tray, a growing tray with drainage holes and a lower tray to collect excess water, separating the growing medium from the drainage water. It is suitable for propagating vegetables, ornamental plants, herbs and other species grown from seed or cuttings.

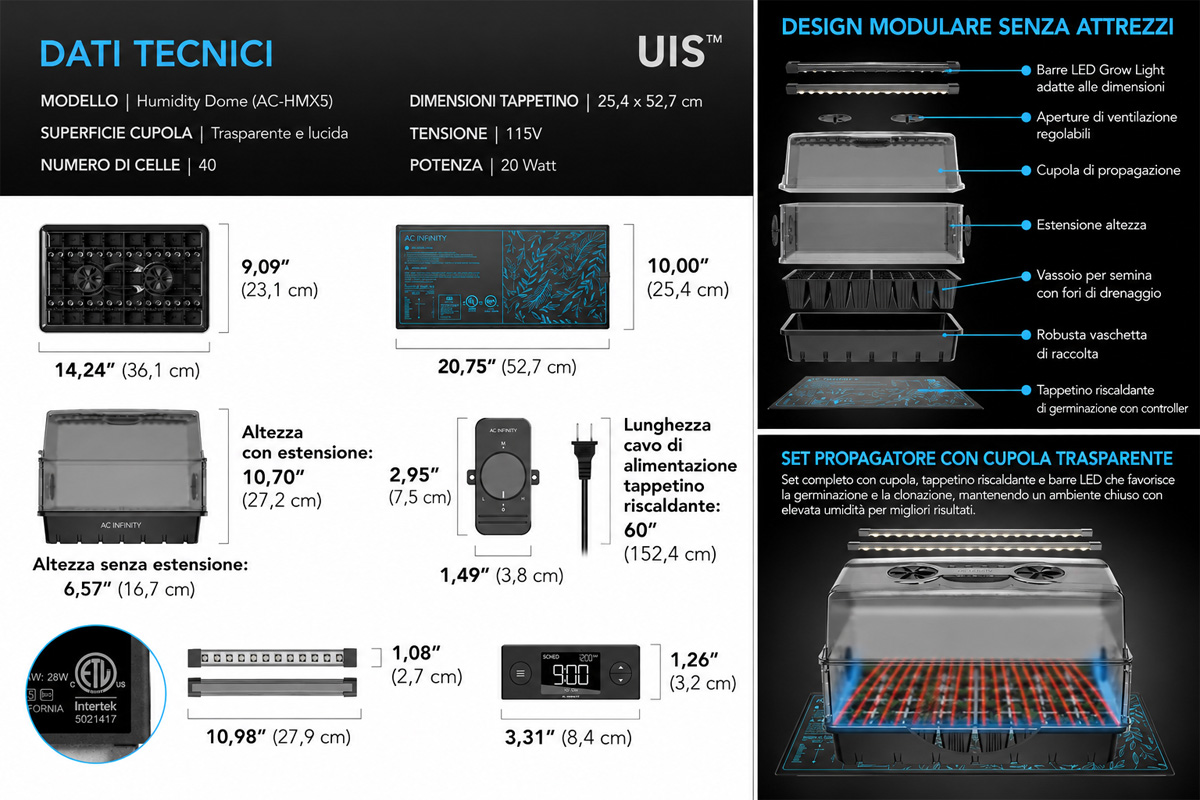

• Model: AC-HMX5
• Type: ventilated mini-greenhouse kit for germination and propagation
• Capacity: 40 cells (5x8)
• Greenhouse dimensions: 36.1 x 16.7 x 23.1 cm
• Height with extension: 27.2 cm
• Rigid dome: 3 mm, glossy PS plastic
• Bottom tray: 1.5 mm, PP plastic
• Cell tray material: PET plastic
• Ventilation openings: 2, or 4 with extension to regulate humidity mechanically
• Number of LED strips: 2
• Dimensions of a single LED strip: 27.9 x 2.7 x 1.5 cm
• LEDs: Samsung LM301H EVO
• Number of diodes: 12 per bar, 24 in total
• Light spectrum: 3000K and 5000K
• LED lighting power: 28W total
• LED bar voltage: 100–240 V AC
• Frequency: 50/60Hz
• LED controller: programmable timer and 4-level dimmer
• Advanced control: 10 levels with AI+ CONTROLLER or compatible 69 PRO CONTROLLER
• LED protection rating: IP65
• LED operating temperature: 0–60°C
• LED rated lifespan: 50,000 hours
• Heating mat dimensions: 25.4 x 52.7 cm
• Heating element: far-infrared film
• Mat material: multi-layer PVC
• Mat temperature: approx. 27–31°C
• Mat control: continuously adjustable dial
• Matte voltage (European version): 230V AC
• Maximum mat power: 20W
• Mat protection rating: IP67
• Mat cable length: 152.4 cm
• Package contents: 1 dome with ventilation openings, 1 height extension, 1 tray with 40 cells, 1 grow tray, 1 drip tray, 2 LED bars, 1 controller with timer, 1 heating mat with regulator
