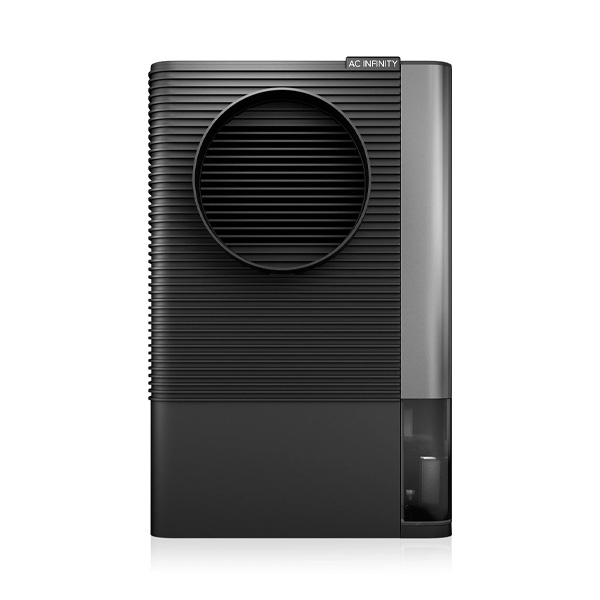

AC Infinity - HYDRONE 5 UIS Growbox Dehumidifier

10-level PWM dehumidifier for grow boxes up to 100x100cm

The AC Infinity HYDRONE 5 is a grow box dehumidifier designed to reduce and regulate humidity in indoor grow set-ups measuring up to 100 x 100 cm. It offers a dehumidification capacity of up to 4 litres per day and uses a PWM rotary motor with 10 adjustment levels, providing more precise control than traditional ON/OFF systems. Thanks to its dual Ø150mm hose connections, it can be installed outside the grow box and channel the dehumidified air directly inside. It is compatible with AC Infinity UIS controllers for automatic humidity and VPD management.

Ducted dehumidification with PWM control and UIS automation

The HYDRONE 5 is ideal for fine-tuning humidity levels, particularly during the flowering stage, when it is necessary to reduce the relative humidity inside the grow box. The two duct connections allow for open-loop or closed-loop configurations, with air recirculation between the dehumidifier and the grow tent. Condensate is collected in the 2-litre tank or continuously drained via a gravity drain pipe. Manual operation allows you to select one of 10 power levels, whilst connecting a CONTROLLER 69 PRO or CONTROLLER AI+ enables you to automate dehumidification based on humidity and VPD, monitoring the parameters via a Wi-Fi app. To operate correctly, it requires an environment that is already ventilated or dehumidified, as it generates heat during operation and is not designed to dehumidify an entire room on its own.

• Model: AC-DHT5
• Type: grow box dehumidifier
• Approximate coverage: up to 100x100cm
• Dehumidification capacity: up to 4 litres per day under suitable conditions
• Motor: PWM-controlled rotary motor
• Adjustment levels: 10
• Tank capacity: 2L
• Duct connections: 2 x Ø150mm
• Air configuration: open or closed circuit
• Condensate drain: internal tank or gravity drain pipe
• Power consumption: 209–350 W
• Power supply: 230V AC / 50Hz
• Dimensions: 24.2 x 26 x 39.8 cm (W x D x H)
• Power cable length: 243.8 cm
• UIS cable length: 304.8 cm
• Manual control: ON/OFF and 10 dehumidification levels
• Compatibility: CONTROLLER 69 PRO and CONTROLLER AI+
• Functions with compatible controller: automatic humidity and VPD control, timers, Wi-Fi monitoring, graphs and notifications
• Additional functions: automatic reset of settings, shut-off when the tank is full and shut-off if the unit tips over
• Package contents: HYDRONE 5 dehumidifier, drain hose, male-to-male UIS extension, 4 Velcro straps and 4 fixing straps
