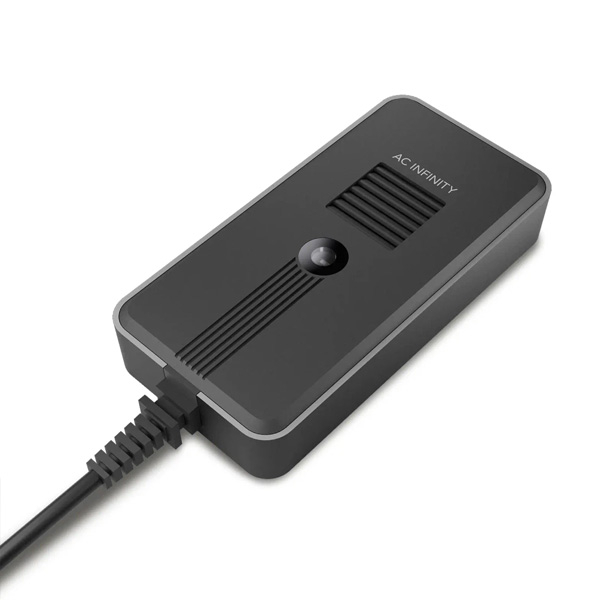

AC Infinity – CO₂ and Light Sensor for the AI+ Controller

Accessory for the AI+ Controller to detect CO₂ and light

The AC Infinity CO₂ + Light Sensor is a sensor for monitoring carbon dioxide and light levels in grow boxes and indoor growing environments. Designed for the AI+ Controller, it allows you to monitor CO₂ levels and detect when the lights are on or off. When connected to the controller, it allows you to view data via a Wi-Fi app and automate the operation of compatible extractor fans, adjusting air exchange based on the detected conditions.

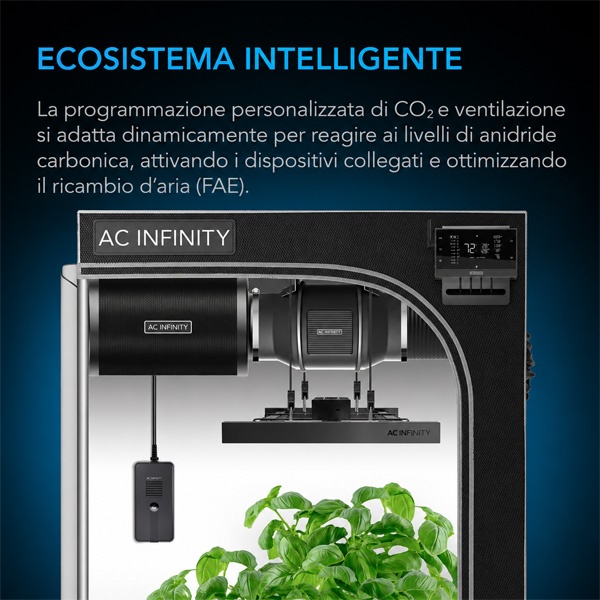

The sensor enables you to set ventilation programmes that respond to CO₂ levels, avoiding unnecessary air changes. Light detection also allows you to adapt operation to the day/night cycle. It is installed at plant height, with the light sensor facing the light source.

• Model: AC-COS3
• Parameters measured: CO₂ and light intensity
• CO₂ measurement range: 0–40,000 ppm
• Light measurement range: 1–65,535 lx
• CO₂ accuracy: ±50 ppm ±5%
• Light accuracy: 1.2 lx
• CO₂ response time: 60 seconds
• Light response time: 120 ms
• Power: 50 mW

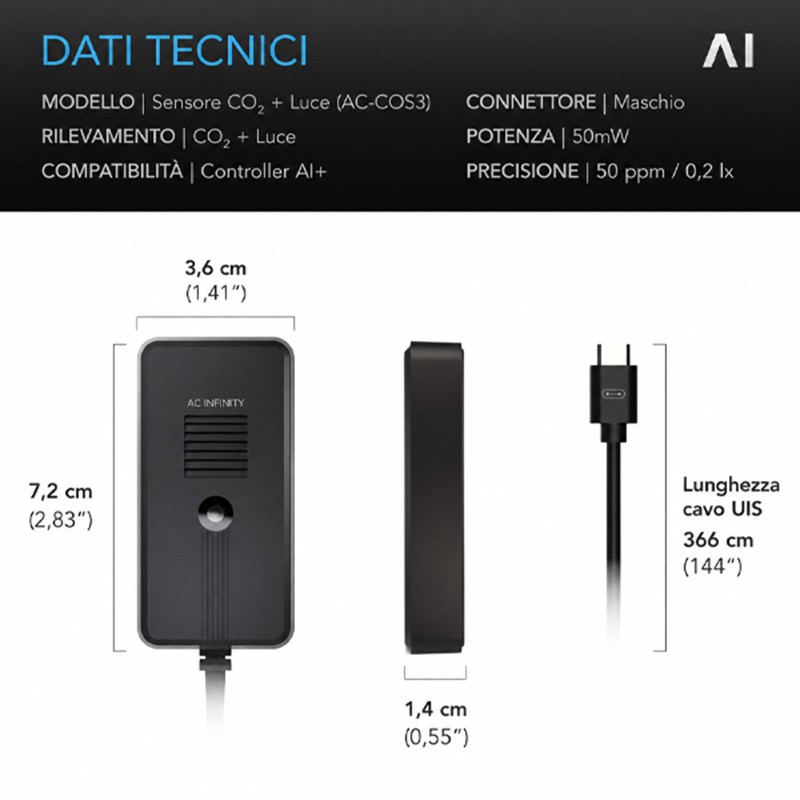

• Dimensions: 3.6 x 7.2 x 1.4 cm
• UIS cable length: 3.66 m
• Connector: Male UIS
• Operating temperature: 0–50°C
• Operating humidity: 35–60% RH
• Compatibility: AC Infinity AI+ CONTROLLER
• Contents: CO₂ and light sensor, fixing screws, cable ties with adhesive backing
