AC Infinity CLOUDFORGE T7 – UIS 15L Grow Box Humidifier

1300ml/h ultrasonic humidifier with automatic refill and VPD

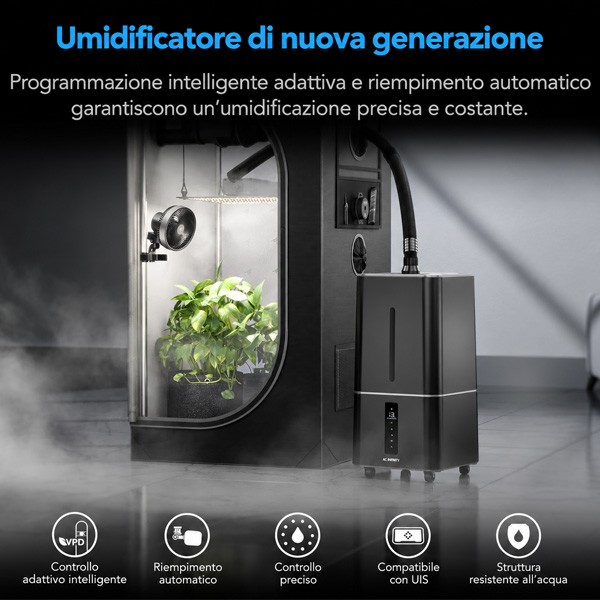

The AC Infinity CLOUDFORGE T7 is an ultrasonic humidifier designed for grow boxes and indoor cultivation, featuring a 15-litre tank and a mist output of up to 1,300 ml/h. It offers a maximum running time of 30 hours, which can be extended via the automatic top-up system that can be connected to an external water source. The integrated digital controller allows automatic adjustment of relative humidity and VPD, with 10 misting levels and intelligent PID control. UIS compatibility also allows it to be integrated into AC Infinity climate automation systems.

High-flow humidification with automatic top-up and VPD control

The CLOUDFORGE T7 uses an EC ultrasonic humidifier that produces a fine, cool mist, automatically adjusting the output based on readings from the climate sensor. The PID control system progressively adjusts the mist output to maintain the set humidity as stably as possible. The automatic top-up valve allows the tank to be filled from an external supply, reducing the need for manual intervention. The extendable tubes and interchangeable nozzles allow the vapour to be distributed directly into the grow box, whilst keeping the unit outside. Connection to a compatible UIS controller enables synchronisation with other devices and access to advanced functions via the AC Infinity app.

• Model: AC-CFT7
• Type: humidifier for grow boxes and indoor cultivation
• Technology: EC ultrasonic atomiser

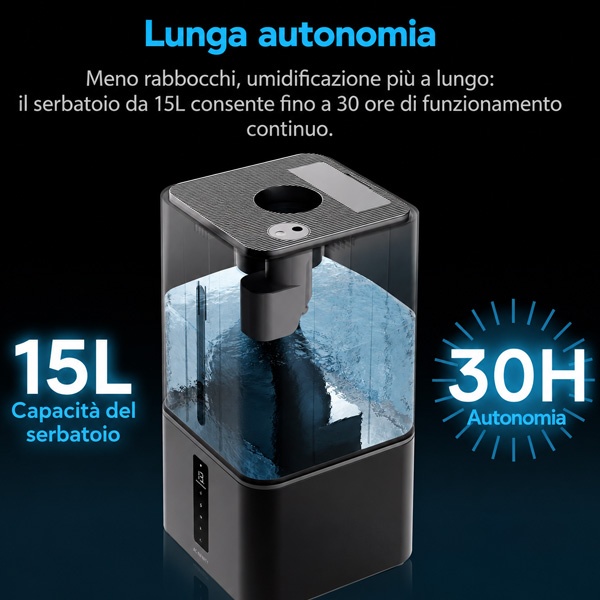

• Tank capacity: 15L
• Maximum mist output: approx. 1300ml/h
• Maximum runtime: up to 30 hours
• Mist levels: 10
• Controller: integrated digital controller with intelligent PID control
• Climate sensor: temperature and humidity
• Control parameters: relative humidity and VPD
• Programming: environmental thresholds, timer and automatic misting control
• Automatic top-up: valve connected to an external water supply

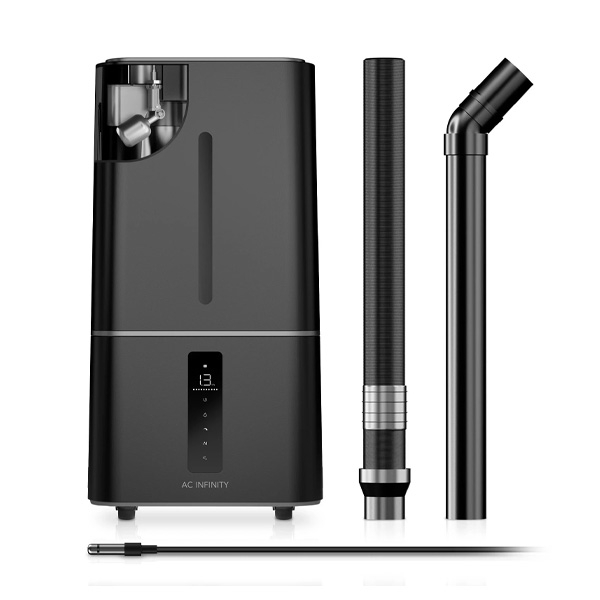

• Vapour distribution: extendable tube, adjustable rigid duct and 5-way nozzle

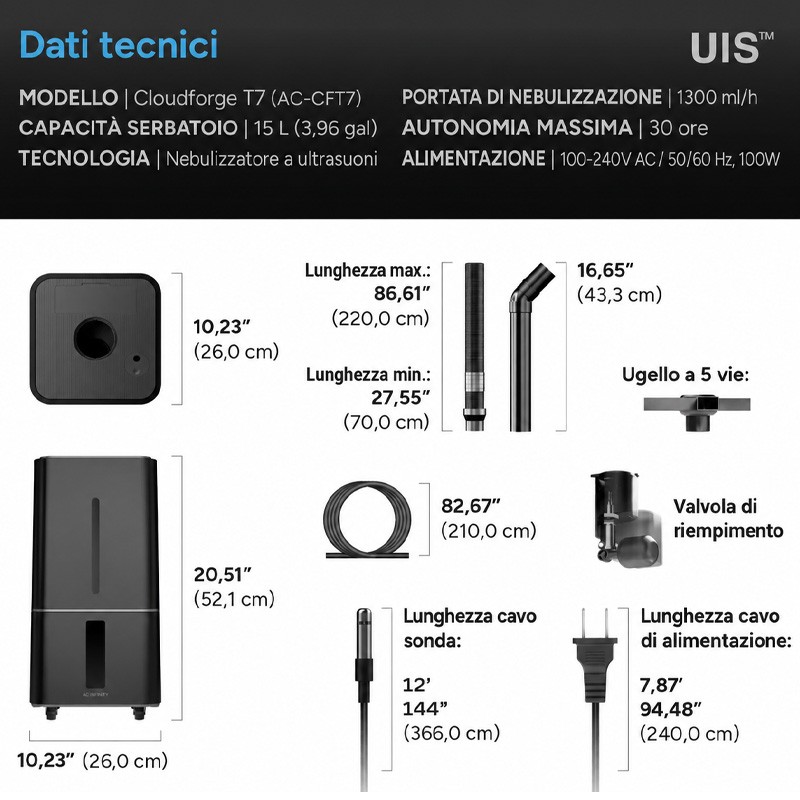

• Extendable tube length: 70–220 cm
• Height of adjustable duct: 43.3 cm
• Refill hose length: 210 cm
• Probe cable length: 366 cm
• Power cable length: 240 cm
• Dimensions: 24.2 x 26 x 52.1 cm (W x D x H)
• Noise level: 46 dBA
• Power consumption: 100 W
• Current draw: 0.43 A at 230 V
• Power supply: 100–240 V AC / 50–60 Hz, European plug
• Operating temperature: 5–50°C
• Operating humidity: 30–85% RH
• Display: backlit and can be switched off
• Compatibility: AC Infinity UIS ecosystem
• Functions with a compatible UIS controller: climate automation, programmes, remote monitoring via app, notifications and environmental graphs
• Safety: automatic shut-off when the tank is empty and moisture-resistant construction

Use only with distilled water
